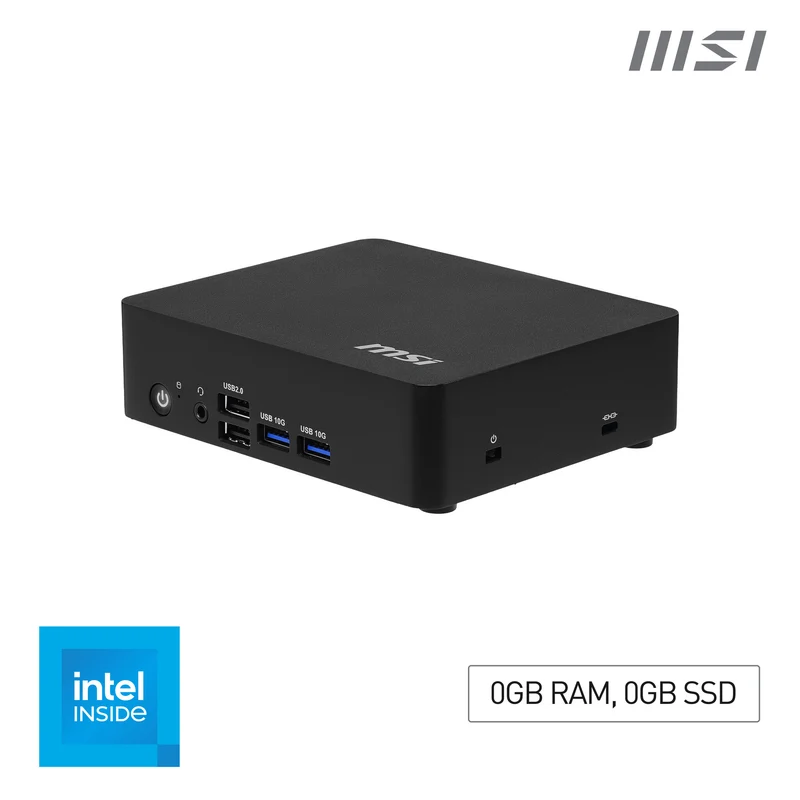

MSI Cubi NUC TWG N250 BB (Intel N250, NO RAM, NO SSD, NO OS) - Barebone, NUC, USFF, Mini Computer, Intel Graphics/DDR5/Type-C/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA

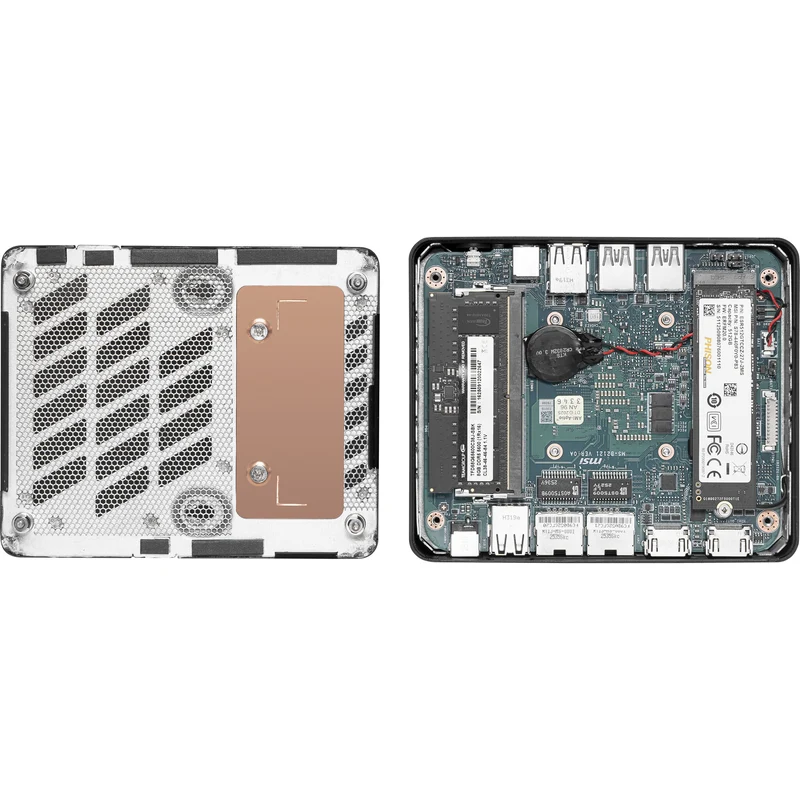

• INTEL MINI PC - The Cubi NUC TWG is a palm-sized mini PC featuring an Intel Intel® CoreTM processor N250 CPU, 1 x DDR5 SO-DIMM slot, 1 x M.2 2280 SSD slot in a compact case
• DDR5 RAM - The system has 1 x DDR5 SO-DIMM slot supporting up to 16GB and supports 4K display - ideal for watching movies; Type C and Dual HDMI 2.1 support triple monitor setups
• The M.2 SSD slot ensures faster loading speeds (supports 1x M.2 2280 SSD (PCIE, factory pre-installed); A 75 x 75 & 100 x 100mm VESA mountable design

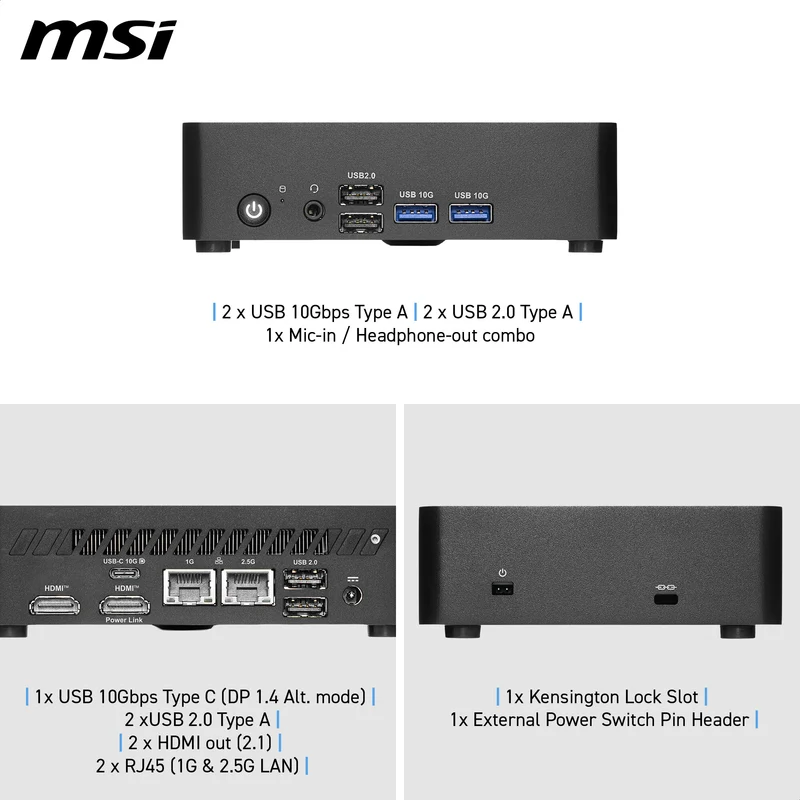

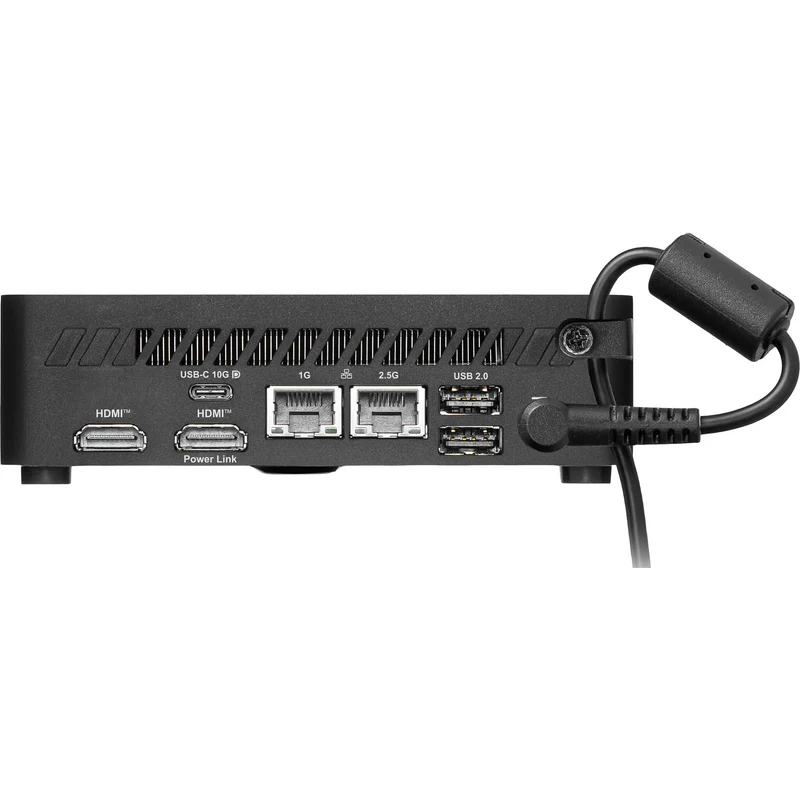

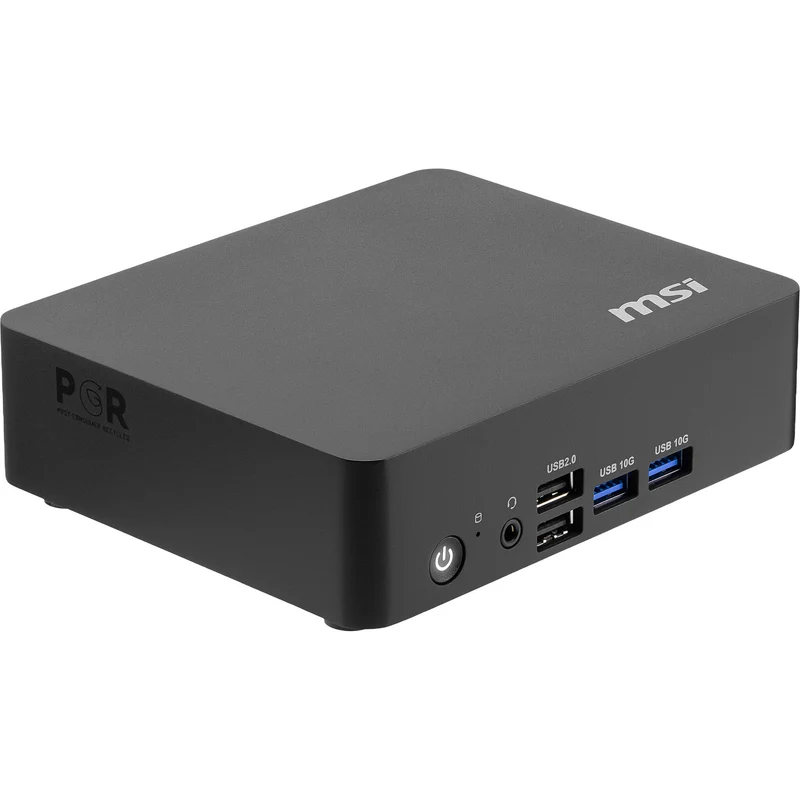

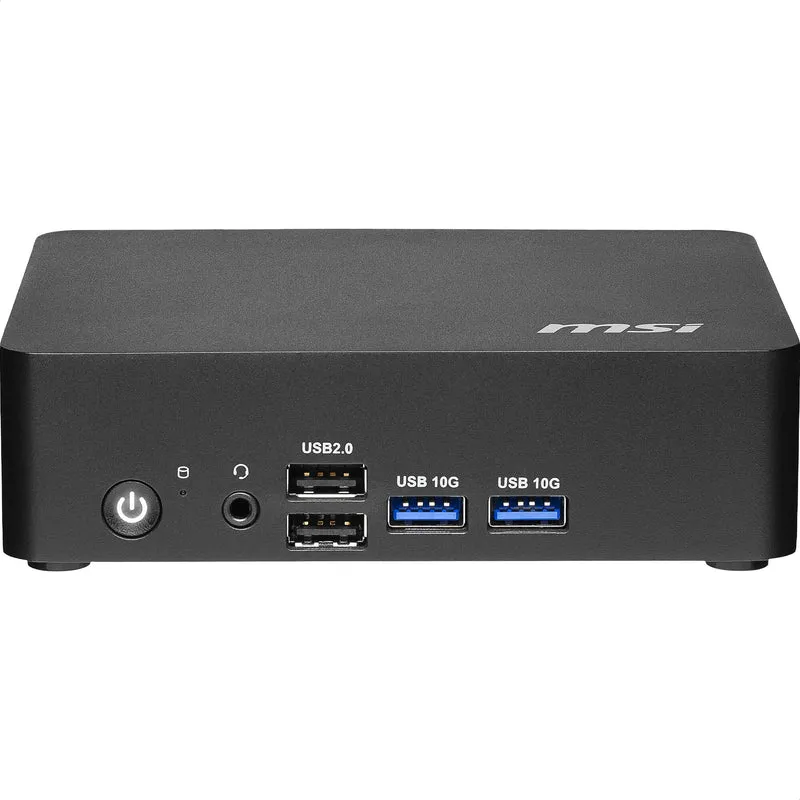

• The front I/O panel features 2x USB 10Gbps Type A, 2x USB 2.0 Type A; the rear side includes 1x USB 10Gbps Type C (DP 1.4 Alt. mode) and 2x USB 2.0 Type A. The compact 0.55L SFF case incorporates an efficient thermal design & low-noise fan
• WI-FI 6E AX211 & BLUETOOTH 5.3 - Network connectivity includes an WI-FI 6E AX211 , and dual ethernet LAN ports (1G & 2.5G) ; fTPM technology provides security for storing sensitive data & passwords

Compact

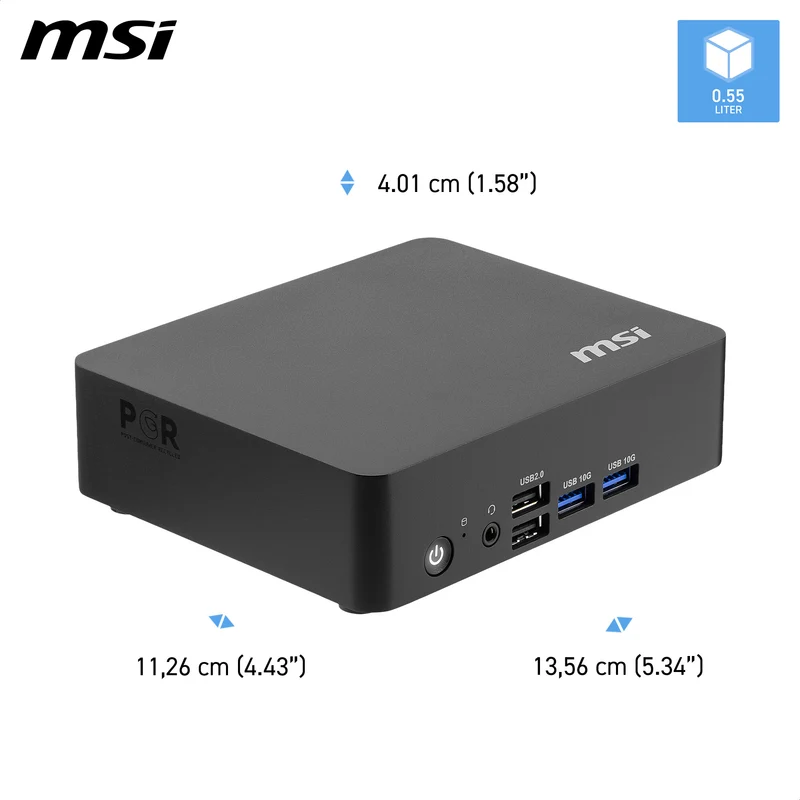

The Cubi NUC TWG Mini PC comes in a palm-sized 135.6 X 112.6 X 40.1 mm case (0.55L/0.54Kg) with far less performance trade-off compared to laptops.

The Cubi NUC TWG Series is an exceptionally quiet system, and includes an Intel N Series processor.

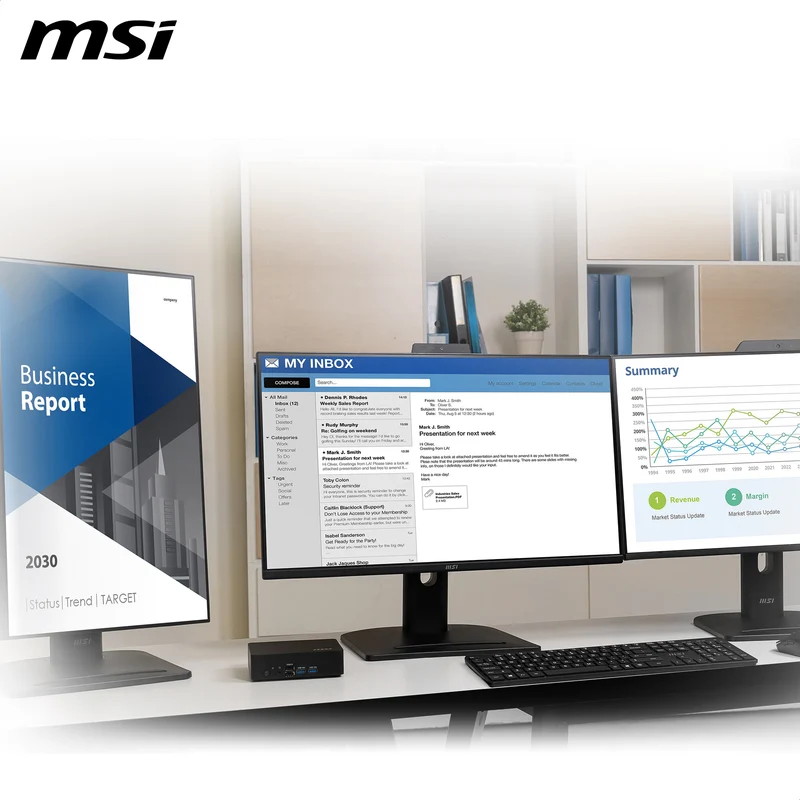

Triple Display Support
The rear & front I/O panels include USB Type-C and HDMI 2.1, which support triple monitor setups for improved workflow efficiency or previewing e-commerce content.

USB Type-C supports the power delivery output of 15W.

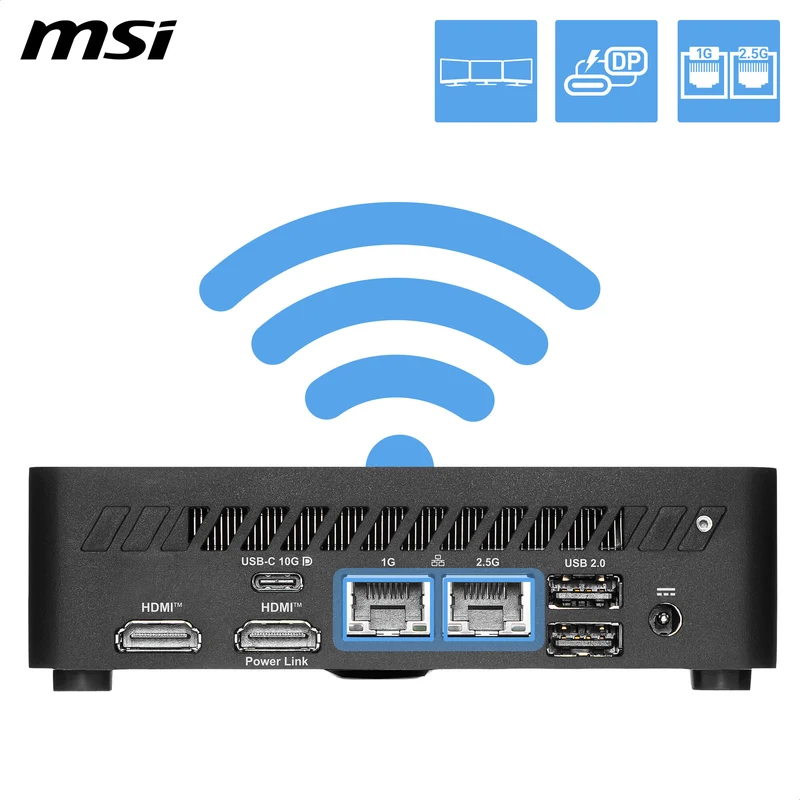

Dual LAN
Network connectivity includes WiFi, Bluetooth, and dual Ethernet LAN (1G & 2.5G).
fTPM technology provides security for storing sensitive data & passwords.

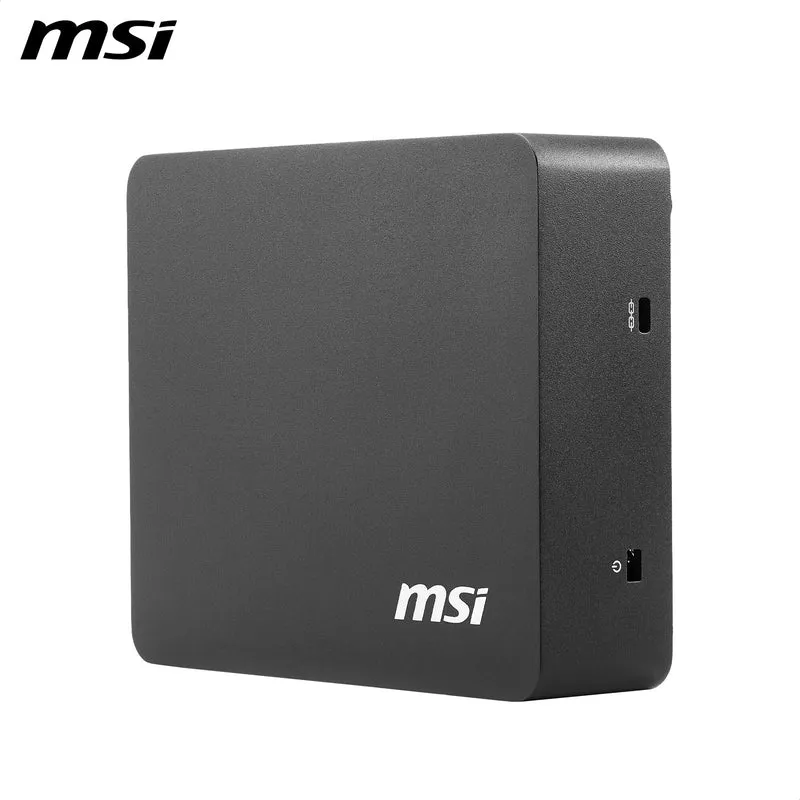

Kensington Lock slot included.

Cable Organizer Design
Cable Organizer keeps cables neat, secure, and protected. The built-in cable organizer prevents accidental disconnections and ensures stable connections even in tight or vibration-prone environments.

MSI Power Link, VESA Mountable Design, Sustainable Design, MSI AI Engine

MSI Power Link
The MSI Power Link allows the power button of MSI-selected monitors to turn on/off the Cubi TWG Series.

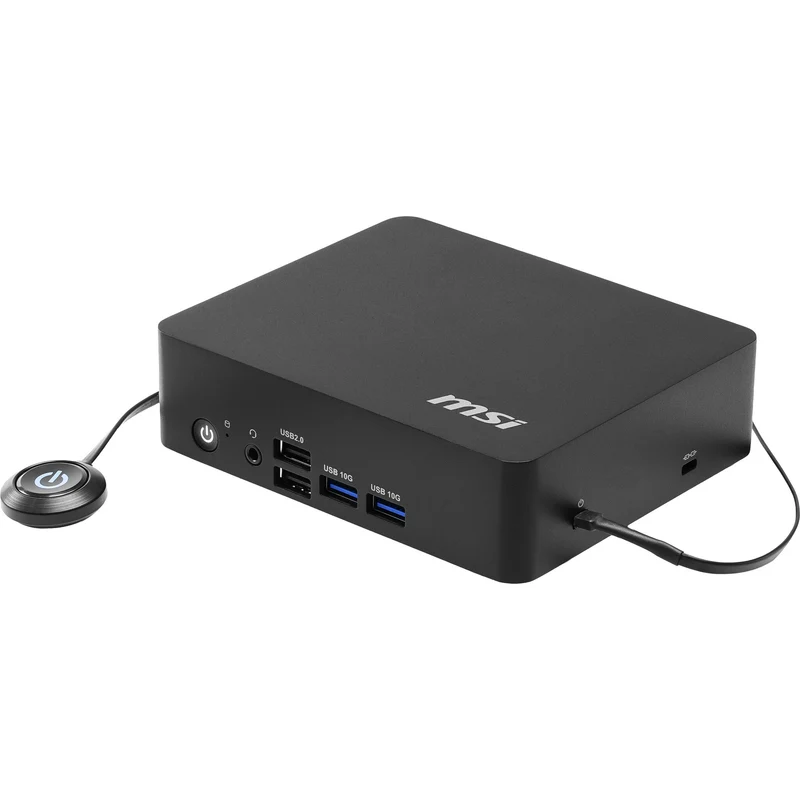

External Power Switch (Optional)

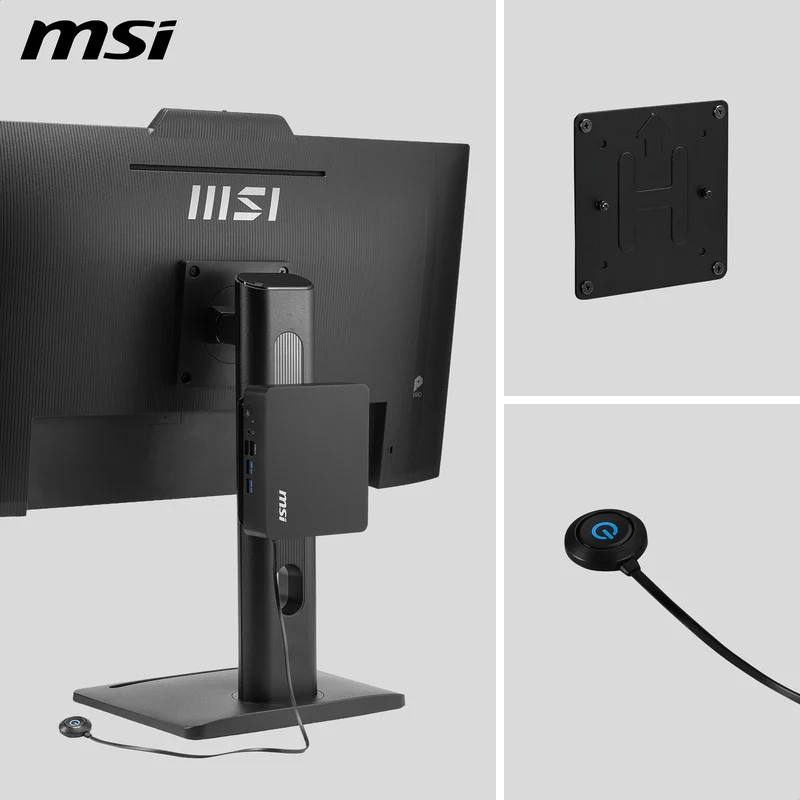

VESA Mountable Design
The chassis is VESA-mountable (standard 100x100 & 75x75), transforming a standard compact desktop layout into an ultra-minimalist, distraction-free environment.

Sustainable Design
Made with PCR (Post-consumer Recycled) plastic materials.
Reduce waste by using a recycled molded pulp tray packing design.
Manufactured with 99% of renewable energy in factory.

MSI AI Engine
MSI AI Engine offers multiple optimizations to reduce workload.

Processor
Built-in processor	Yes
Processor manufacturer	Intel
Processor family	Intel® N
Processor model	N250
Processor cores	4
Processor threads	4
Processor boost frequency	3.8 GHz
Processor frequency	3.8 GHz
Processor cache	6 MB
Processor cache type	Smart Cache

Memory
Internal memory installed	No
Memory slots type	SO-DIMM
Number of memory slots	1
Maximum internal memory	16 GB

Storage
Storage drives installed	No
Supported storage drive types	SSD
Storage drive sizes supported	M.2

Graphics
On-board graphics card	Yes
On-board graphics card model	Intel® Graphics
Discrete graphics card model	Not available

Audio
Built-in speaker(s)	No

Network
Ethernet LAN	Yes
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Bluetooth	Yes

Ports & interfaces
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	2
HDMI version	2.1
Combo headphone/mic port	Yes
Ethernet LAN (RJ-45) ports	2

Design
Chassis type	USFF
Product colour	Black
Cooling type	Active
Cable lock slot	Yes
Cable lock slot type	Kensington
Product type	Mini PC barebone

Performance
Motherboard chipset	Intel SoC
Processor socket	BGA 1264
Trusted Platform Module (TPM)	Yes

General
Product family	Cubi

Software
Operating system installed	No

Power
Power supply type	External AC adapter
Power supply	65 W

Operational conditions
Storage relative humidity (H-H)	0 - 90%
Operating relative humidity (H-H)	0 - 85%
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 35 °C

Weight & dimensions
Width	112.6 mm
Depth	135.6 mm
Height	40.1 mm
Weight	540 g
Package weight	1.29 kg

Packaging content
Display included	No

Other features
Warranty period	3 year(s)
