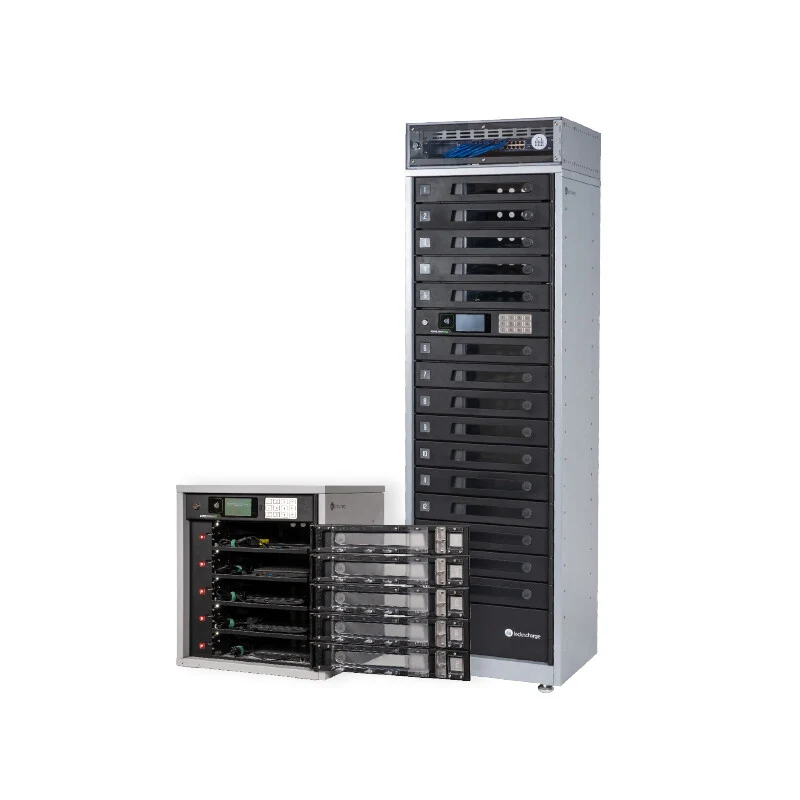

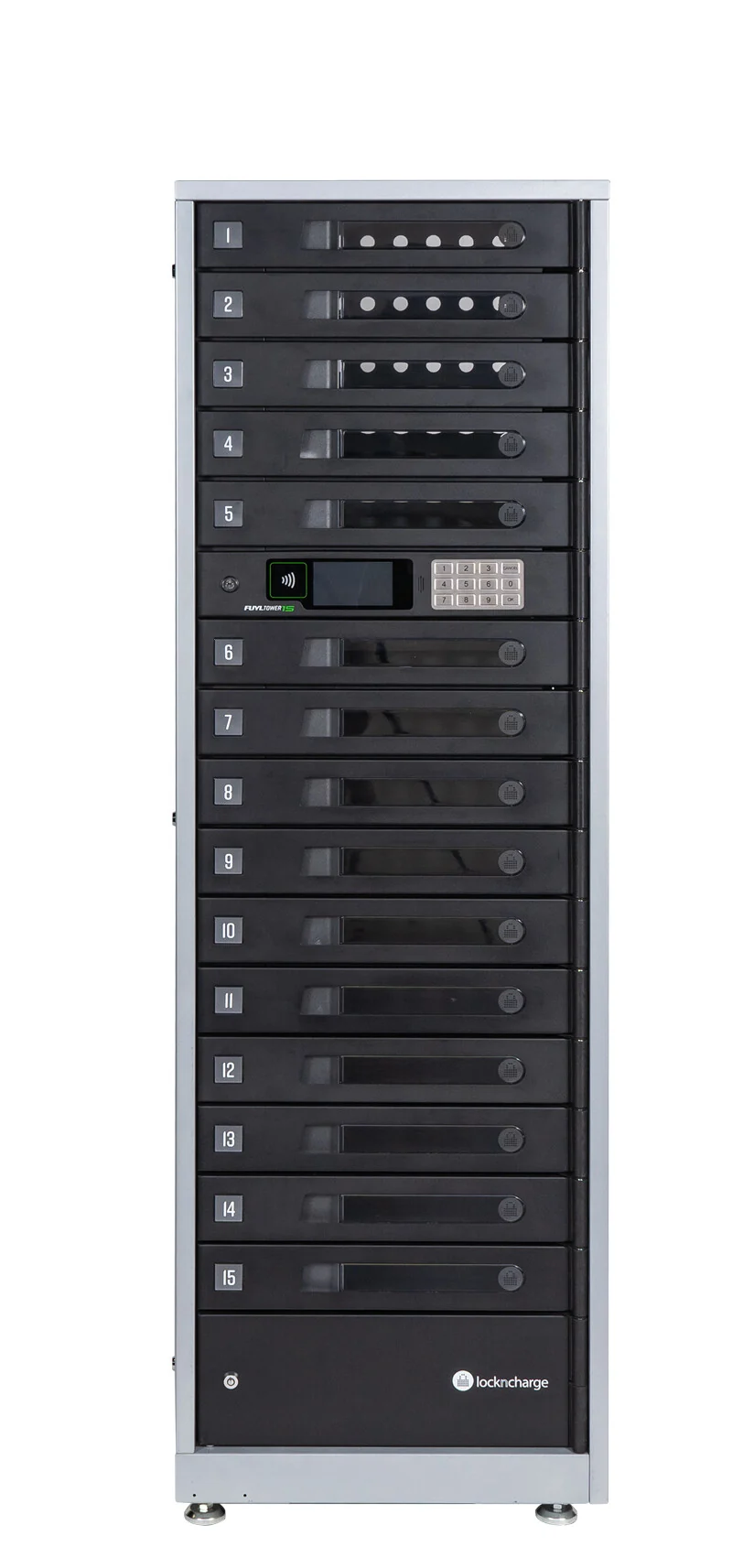

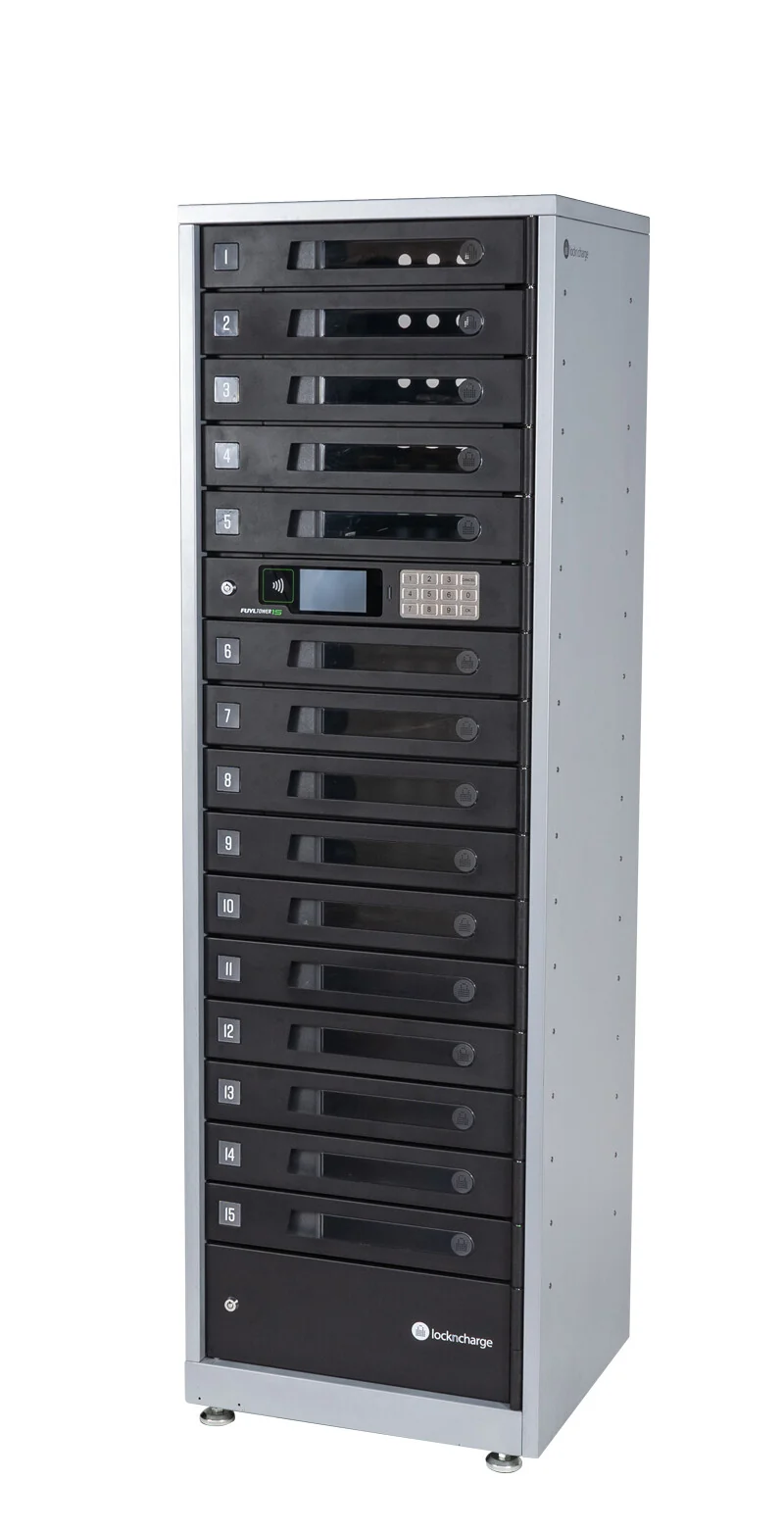

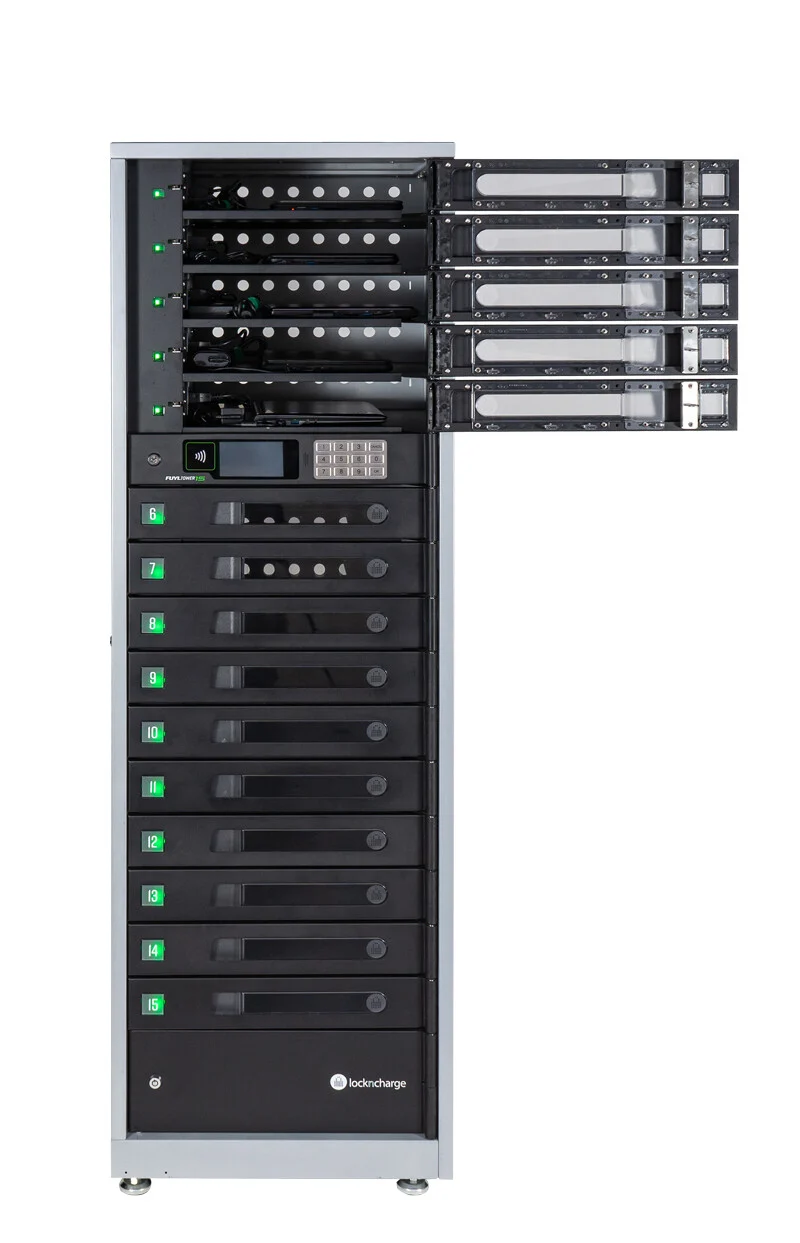

LocknCharge FUYL Tower 15 Portable device management cabinet Black, Grey

• Portable device management cabinet
• Placement: Floor
• 15 shelves
• Number of devices supported: 15
• Supported portable devices: Laptop, Tablet Device connectors supported: AC
• Black, Grey

A complete smart locker solution with cloud-based software to efficiently charge, store, secure and manage workflow for phones, tablets, laptops and other mobile devices.

Smarter mobile device management with FUYL Tower Pro Smart Charging Lockers

FUYL Tower powered by LocknCharge Cloud can automate device check in/out, broken device exchanges and secure public charging on demand.

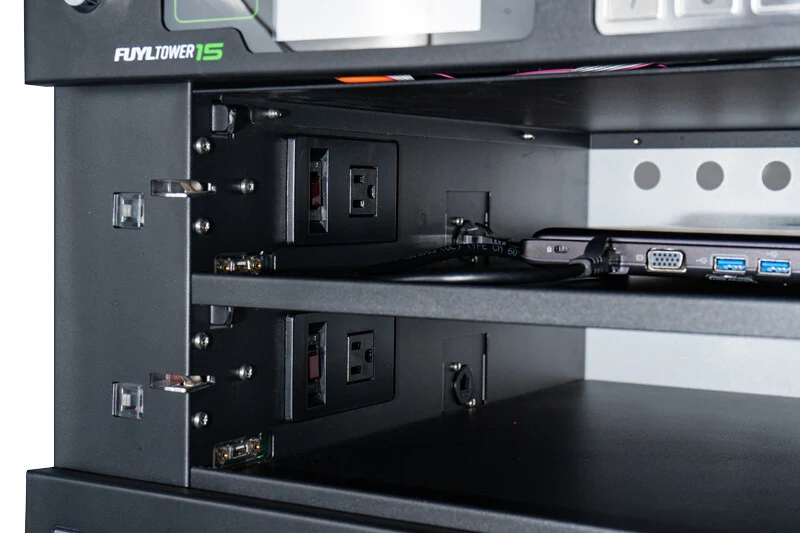

USB-C PD Port and Power Outlet
Each bay contains one power outlet and one 36W USB-C PD Charging port.

Secure, Steel Construction
Roust construction deters attempted break ins.

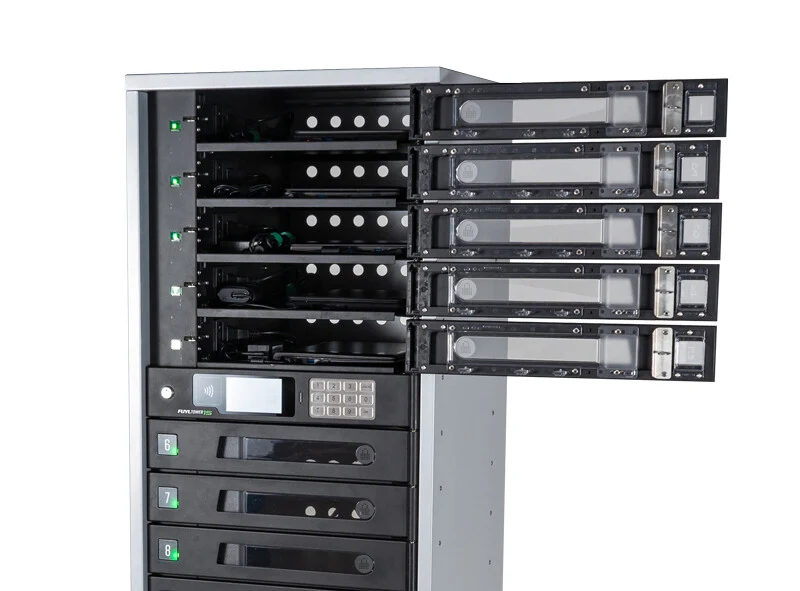

Serviceability in the FIeld
Various hardware and electronic components are packaged into modules.

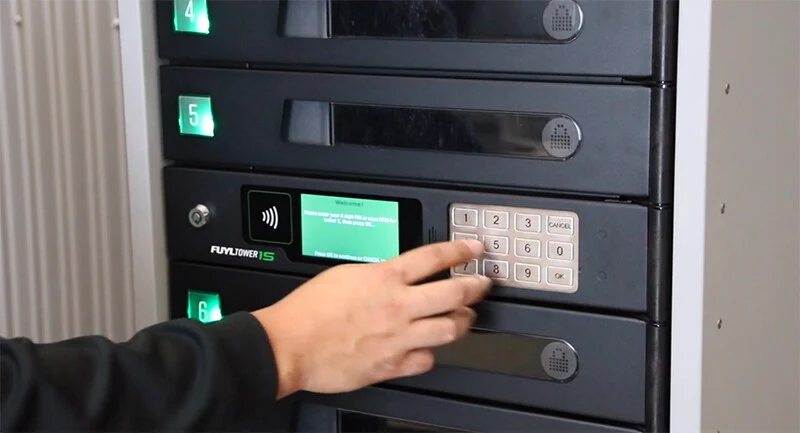

RFID or PIN Code Access
Compartments can be opened via RFID or PIN code. FUYL Tower supports most RFID standards.

External LED Bay Status
Each bay has an external LED indicator to know if a bay is available (green), reserved (white) or offline (no light).

Illuminated Compartments
Internal bay lights help users clearly see contents inside when the door is open.

Easy-to-Follow Display
4.3" graphical color control module and keypad is simple to navigate for both admins and users.

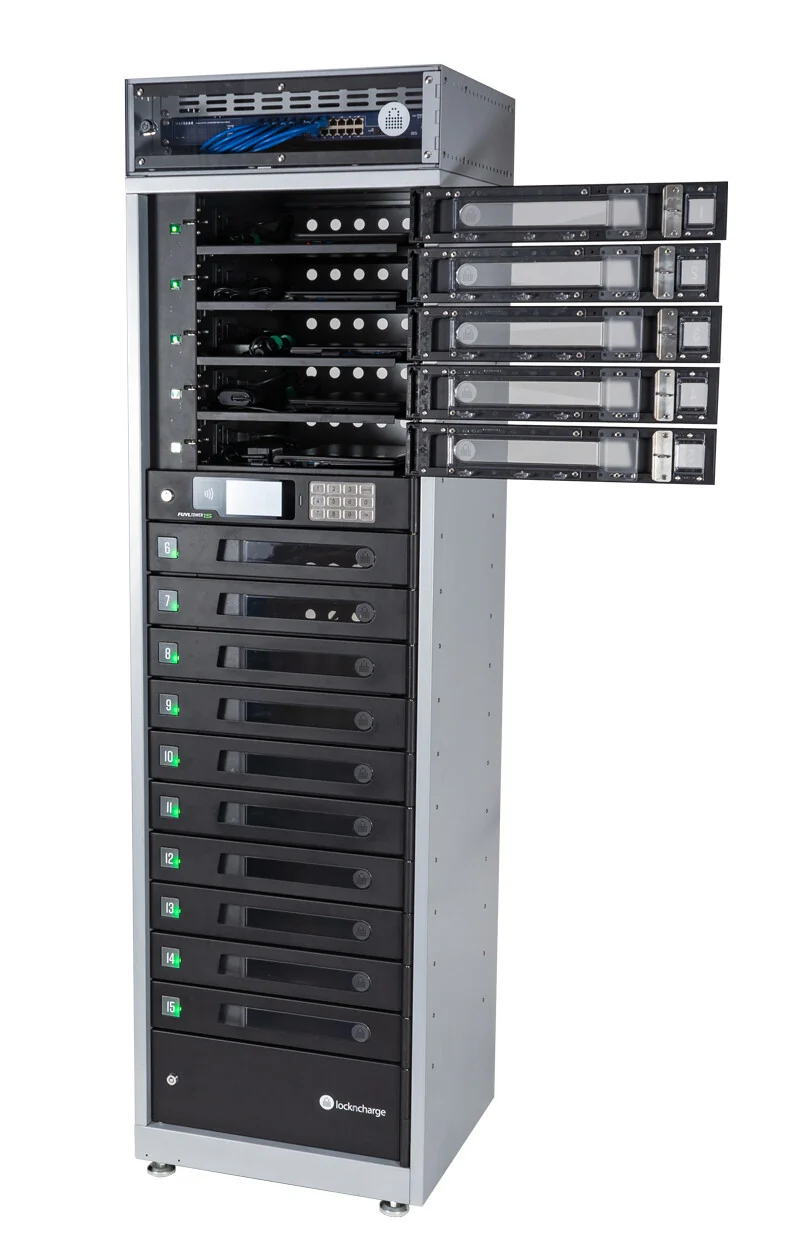

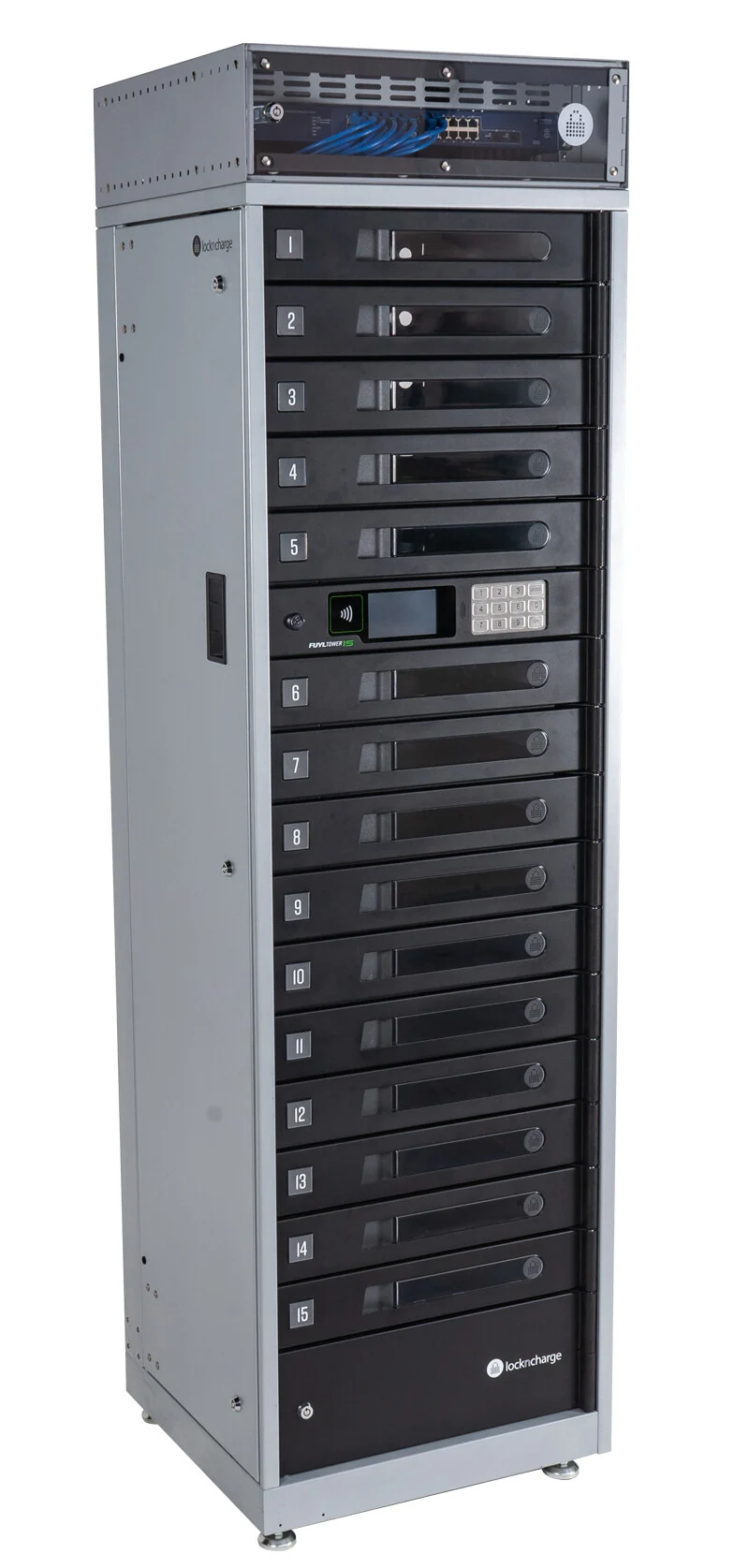

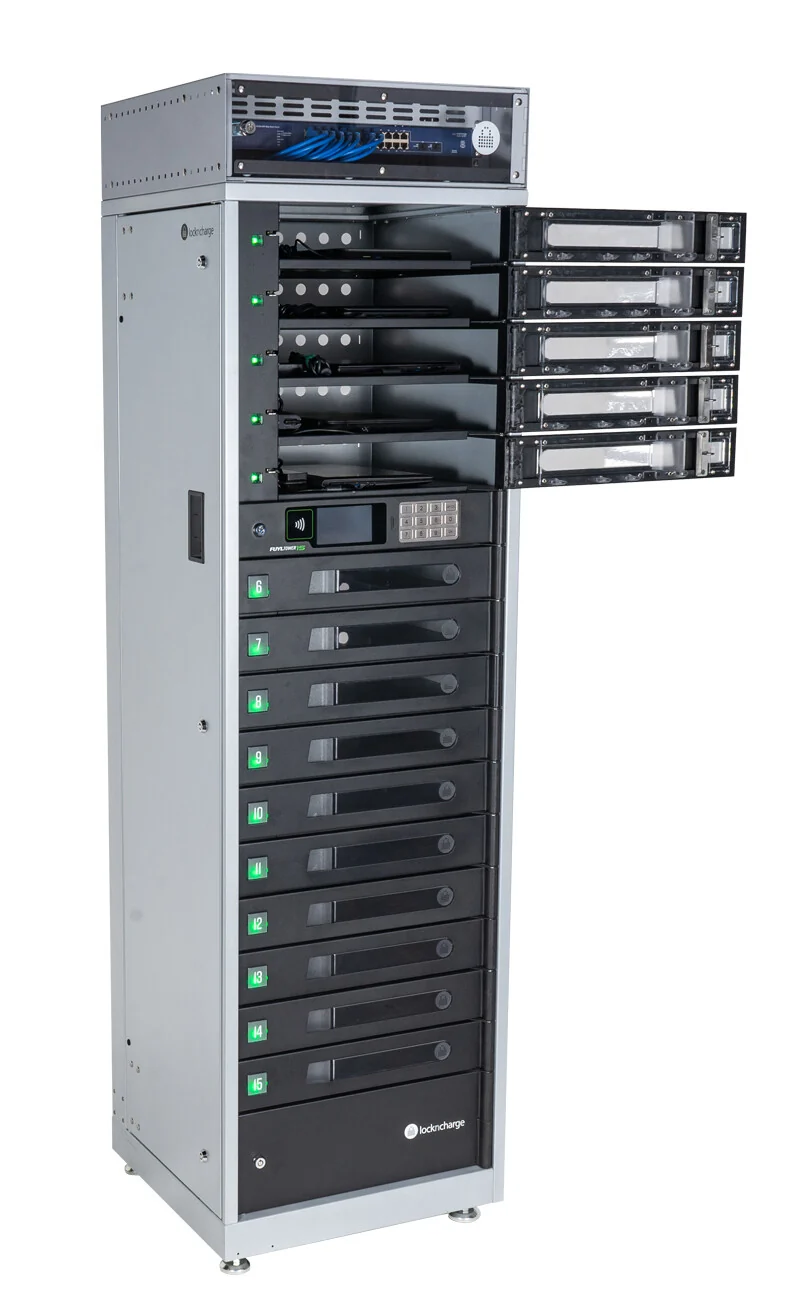

Optional Network Kit
The Network Kit enables installation of a network switch (not included), making it possible to re-image devices remotely.

Design
Type	Portable device management cabinet
Placement	Floor
Slot height	7.3 cm
Slot depth	43.8 cm
Slot width	36.5 cm
Door opening	Side opening
Door hinge	Right
Number of shelves	15 shelves
Product colour	Black, Grey

Features
Number of devices supported	15
Supported portable devices	Laptop, Tablet
Device connectors supported	AC
Locking	Yes

Power
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	20 V
Output current	3 A
Power per device	36 W

Certificates
Certification	CE

Weight & dimensions
Width	523 mm
Depth	478 mm
Height	1696 mm
Weight	88 kg

Packaging content
Manual	Yes
