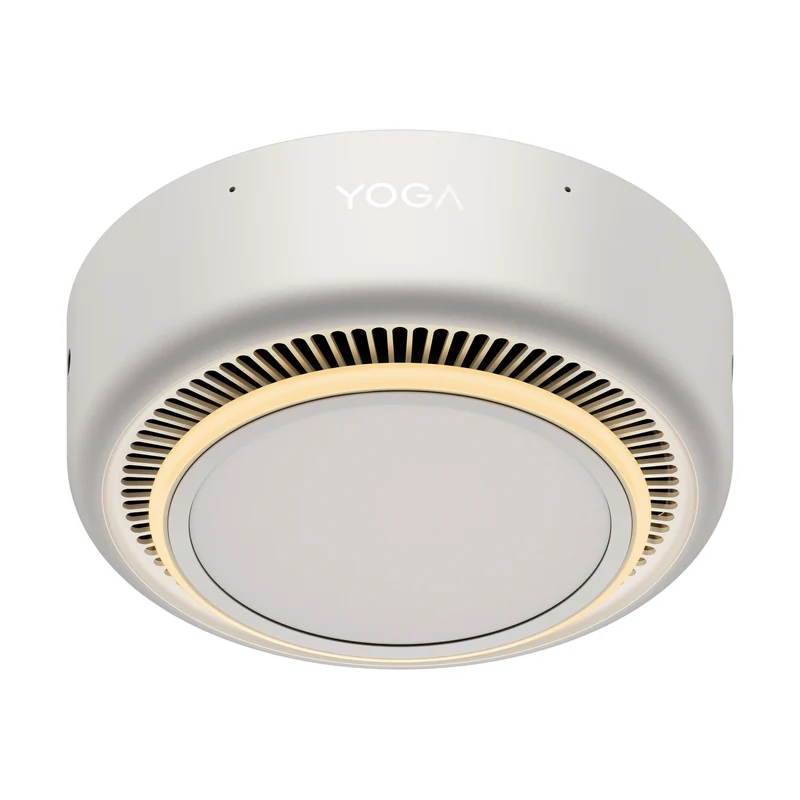

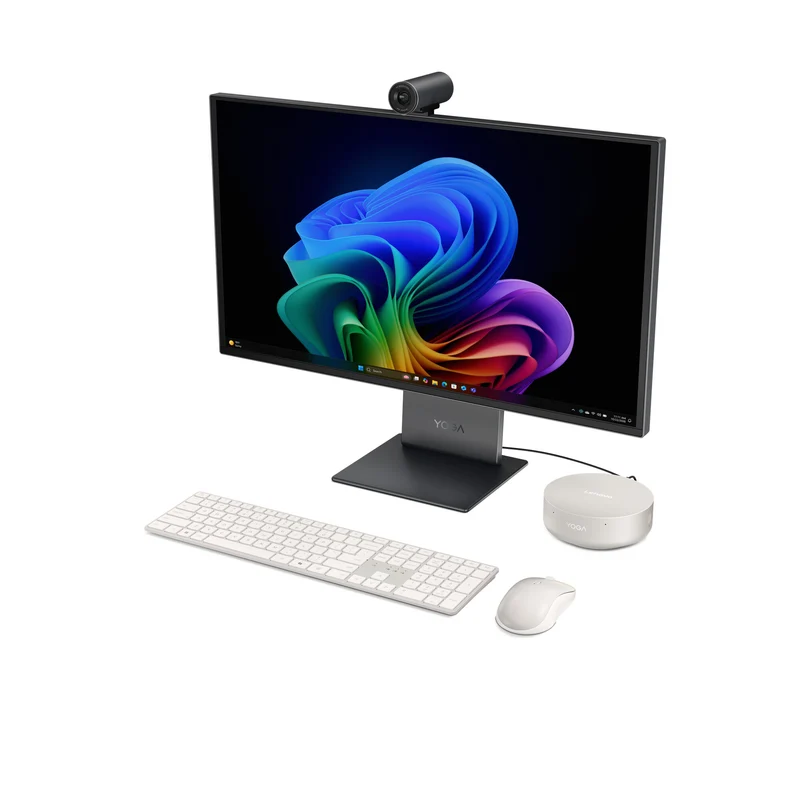

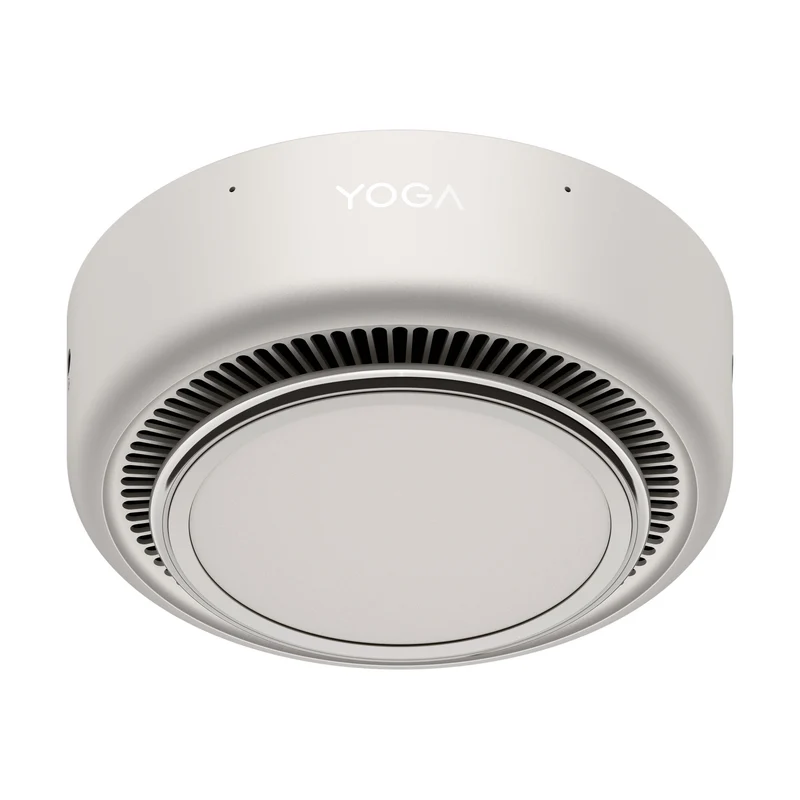

Lenovo Yoga Mini 01IPH11 Intel Core Ultra 5 325 16 GB LPDDR5x-SDRAM 512 GB SSD Windows 11 Home Mini PC Grey

• Intel Core Ultra 5 325, 8C (4P + 4LPE)/8T, Max Turbo up to 4.5GHz, 12MB Intel Smart Cache
• 16GB LPDDR5X-8533
• 512GB SSD M.2 2280 PCIe 4.0x4 NVMe
• Intel Graphics
• Windows 11 Home

- Ultralight, aluminum mini PC with robust functionality & smart sensing features for amplified productivity
- High performance, enhanced memory & superior graphics with Intel® Core™ Ultra Series 3 processor
- Adaptive Lighting, smart connectivity & easy storage expansion for limitless possibilities

Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor generation	Intel® Core™ Ultra (Series 3)
Processor model	325
Processor cores	8
Processor threads	8
Processor boost frequency	4.5 GHz
Performance cores	4
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.5 GHz
Low Power Efficient-core Max Turbo Frequency	3.4 GHz
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.6 GHz
Low Power Efficient-core Base Frequency	1600 MHz
Processor cache	12 MB
Processor cache type	Smart Cache
Maximum turbo power	55 W
Processor base power	25 W

Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to	47 TOPs
GPU performance up to	40 TOPs

Memory
Internal memory	16 GB
Maximum internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	8533 MHz

Storage
Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Card reader integrated	No

Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics

Network
Ethernet LAN	Yes
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.4

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes

Design
Chassis type	Mini PC
Colour name	Seashell
Volume	0.65 L
Product colour	Grey

Performance
Product type	Mini PC
Motherboard chipset	Intel SoC
Audio chip	Realtek ALC3341S
Audio system	High Definition Audio
Number of speakers	1
Trusted Platform Module (TPM)	Yes

Software
Operating system installed	Windows 11 Home
Operating system language	English

Power
Power supply	100 W

Certificates
Certification	RoHS

Weight & dimensions
Width	130 mm
Depth	130 mm
Height	48.6 mm
Weight	600 g

Packaging content
Display included	No

• leaflet
• Safety Information

• 360
