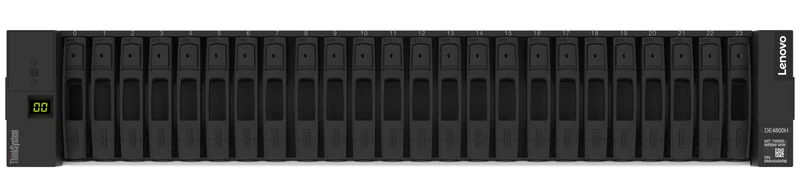

Lenovo ThinkSystem DE4800H 2U24 SFF disk array Rack (2U) Black

• Small & Medium Business
• Rack (2U) Black
• Hot-swap drive bays
• 913 W

Lenovo ThinkSystem DE4800H and DE4800F are a scalable, hybrid and all flash mid-range storage system that is designed to provide high performance, simplicity, capacity, security, and high availability for medium to large businesses. The DE4800H and DE4800F deliver enterprise-class storage management capabilities in a performance-optimized system with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features.

Storage
Hot-swap drive bays	Yes
Data transfer rate	12 Gbit/s
RAID levels	0, 1, 5, 6, 10
Storage drive sizes supported	2.5"
Supported storage drive interfaces	SAS
Number of storage drives supported	24
Supported storage drive types	HDD & SSD

Ports & interfaces
Serial interface type	RJ-45, USB C
RJ-45 ports quantity	1
Host ports	12

Design
Built-in display	Yes
LED indicators	Yes
Product colour	Black
Chassis type	Rack (2U)
Device class	Small & Medium Business

Performance
Maximum number of hosts supported	512
Cache size (max)	128 GB
Maximum number of controllers supported	2

Power
AC input voltage	100 - 240 V
Hot-swap PSU	Yes
Redundant power supply (RPS) support	Yes
Power supply unit (PSU) capacity	913 W

Weight & dimensions
Weight	25.1 kg
Height	85 mm
Depth	553 mm
Width	449 mm

Operational conditions
Operating altitude	0 - 3050 m
Storage relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	8 - 90%
Operating temperature (T-T)	10 - 40 °C
