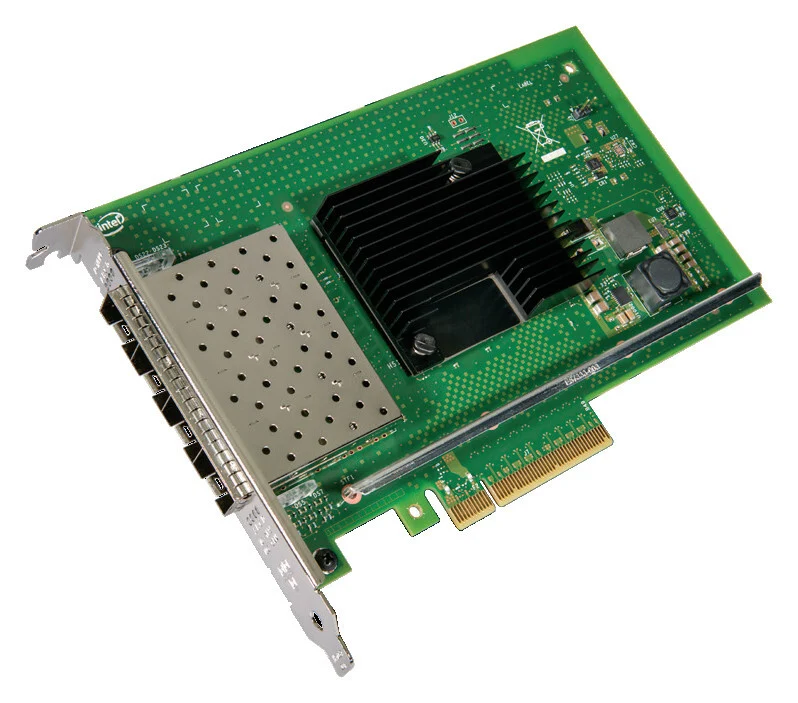

Lenovo 7XC7A05525 network card Internal Fiber 10000 Mbit/s

• Wired
• PCI Express 3.0 Fiber
• 10000 Mbit/s
• Internal Component for: Server

The Intel X710 family of 10 Gigabit Ethernet (GbE) server network adapters addresses the demanding needs of the next-generation data center. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.

The Intel X710 family of 10 Gigabit Ethernet (GbE) server network adapters addresses the demanding needs of the next-generation data center. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.

The X710 is available in three host connections: a standard PCIe host interface, a Mezzanine LOM (ML2) host interface for ThinkSystem and System x servers, and an AnyFabric host interface for ThinkServer systems (now withdrawn).

Ports & interfaces
PCI version	3.0
Fiber ports quantity	4
Fiber optic connector	SFP+
Interface	Fiber
Host interface	PCI Express
Connectivity technology	Wired

Network
Networking standards	IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x
Maximum data transfer rate	10000 Mbit/s

Design
Compatible products	ST50 (7Y48/7Y50)ST250 (7Y45/7Y46)SR150 (7Y54)SR250 (7Y51/7Y52)x3550 M5 (8869)x3650 M5 (8871)
Certification	EN55022EN55024EN 61000-3-2EN 61000-3-3ICES-003, Issue-004FCC 47 CFR Part 15 Class AVCCIAS/NZS CISPR 22 / C-tickRRL for KCBSMIUL 94 V-1
Product colour	Green
Component for	Server
Internal	Yes

System requirements
Linux operating systems supported	Yes
Windows operating systems supported	Yes

Operational conditions
Storage relative humidity (H-H)	5 - 80%
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 55 °C

Weight & dimensions
Height	111 mm
Depth	167 mm
Width	15 mm

Technical details
Compliance certificates	RoHS

Logistics data
Harmonized System (HS) code	85176990

Other features
Maximum operating temperature	55 °C
Minimum operating temperature	0 °C
