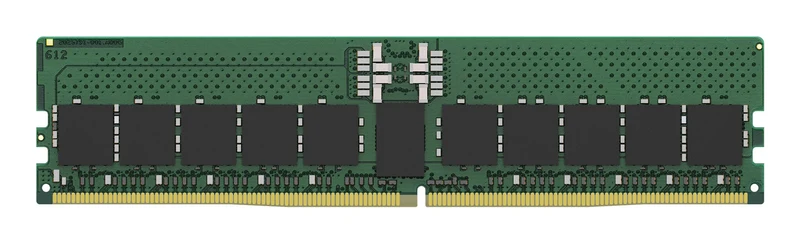

Kingston Technology 32GB 5600MT/s DDR5 ECC Reg CL46 DIMM 2Rx8 Micron H

• Server 32 GB DDR5 5600 MT/s
• 288-pin DIMM 1 x 32 GB
• CAS latency: 46
• 1.1 V
• ECC

Kingston's KSM56R46BD8-32MH is a 4G x 80-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components.
The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Features
Buffered memory type	Registered (buffered)
Internal memory	32 GB
Memory layout (modules x size)	1 x 32 GB
Internal memory type	DDR5
Component for	Server
Memory form factor	288-pin DIMM
ECC	Yes
On-Die ECC	Yes
CAS latency	46
Memory data transfer rate	5600 MT/s
Memory ranking	2
Memory voltage	1.1 V
Module configuration	4096M x 80
Row cycle time	48 ns
Refresh row cycle time	295 ns
Row active time	32 ns
Row Precharge Time (TRP)	16
SPD profile	Yes
JEDEC standard	Yes

Operational conditions
Operating temperature (T-T)	0 - 95 °C
Storage temperature (T-T)	-55 - 100 °C

Technical details
Compliance certificates	RoHS

Weight & dimensions
Width	133.3 mm
Height	31.2 mm
