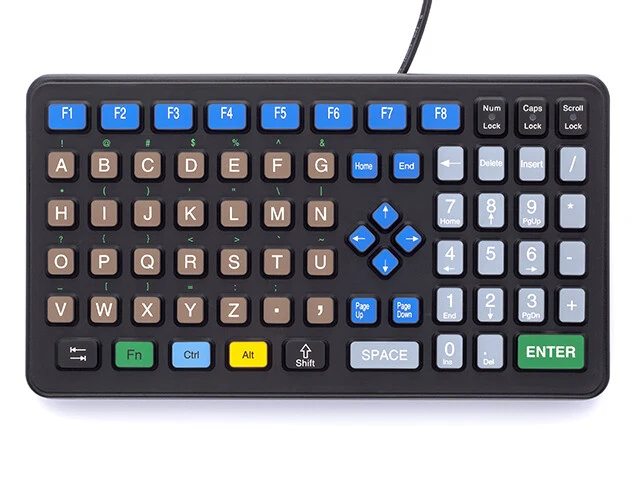

iKey DP-72 keyboard Industrial USB English Black

• 72-Key Functionality
• 8 Function Keys
• Lightweight ABS Polycarbonate Case
• Mounting Holes

Small Footprint with Oversized Keys

iKey’s innovative DP-72 mobile keyboard was designed to accommodate rugged applications in manufacturing, material handling and remote data entry. Its unique, oversized keys are color arranged and feature a roomy layout for convenient gloved-hand use. It features a small-footprint design, mounting holes in its case and a large numeric pad. Like other keyboards in the iKey line, the DP-72 is constructed using a robust polycarbonate case and industrial silicone keypad, sealing it from dust, liquids and corrosives.

Keyboard
Recommended usage	Industrial
Connectivity technology	Wired
Device interface	USB
Keyboard language	English
Pointing device	No
Keyboard form factor	Mini
Numeric keypad	Yes
Keyboard number of keys	72
Keyboard keys operating life	10 million characters
Fingerprint reader	No
Key travel distance	1.4 mm
Actuation force	135 g
Certification	NEMA 4X UL60950, FCC Part 15 Class B

Design
Backlight	No
Keyboard style	Straight
Wrist rest	No
Product colour	Black
Material	Polycarbonate, Silicone

Features
Cable length	3 m

Power
Power consumption	50 mA
Operating voltage	5 V

Operational conditions
Operating relative humidity (H-H)	0 - 100%

Weight & dimensions
Keyboard dimensions (WxDxH)	289.56 x 47.24 x 160 mm
Keyboard weight	910 g

Logistics data
Harmonized System (HS) code	84716060
