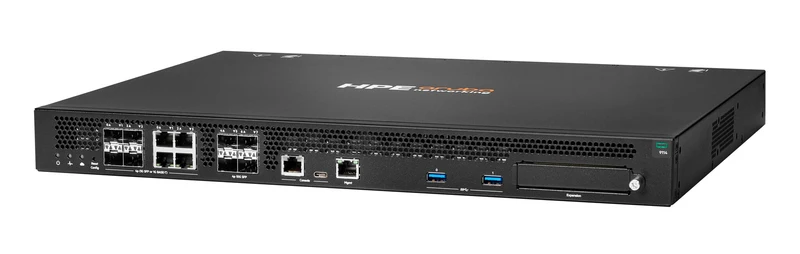

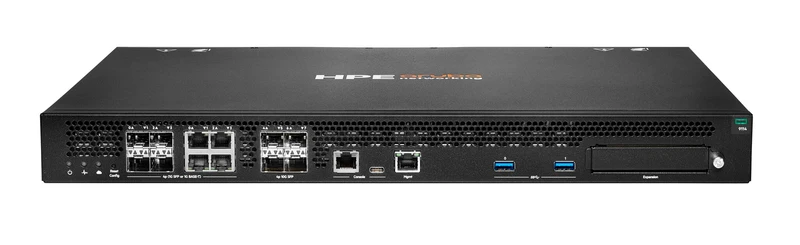

HPE Aruba Networking 9114 4x SFP+ 4x Combo 1x Expansion Slot Hybrid Gateway

• 1000,10000 Mbit/s
• Rack mounting
• Black

The HPE Aruba Networking 9100 Series Hybrid Gateways is a cloud-optimized edge appliance designed to securely and seamlessly extend enterprise services to medium branch, large branch and small campus networks. Using cloud architecture scale and efficiency together with intelligent edge device security and performance capabilities, the 9100 Hybrid Gateway delivers scalable, high-performance Wi-Fi with enhanced security to the edge. This purpose-built high-performance edge appliance delivers seamless roaming, 24/7 reliability, and always-on connectivity - even during upgrades. Intelligent automation, AI insights, and unified infrastructure management, delivered by AOS-10 and HPE Aruba Networking Central, simplify and power IT operations. This versatile gateway provides advanced wireless capabilities, intelligent routing with both wireless and wired tunnel orchestration, and automated and unified role-based policy enforcement for users and IoT across LAN, WAN, and SD-WAN.

What is new supporting point:
Always-on high availability with live upgrades, clustering, and redundancy.
Scales to meet medium branch, large branch and small campus needs supporting up to 4K APs and 10K clients.
High-speed wired connectivity with 10 GbE fiber ports for up to 20 Gbps throughput.
Dynamic segmentation for automated role-based policy enforcement across users, devices, and IoT.
Versatile scalable platform for cloud-based wireless gateway, SD-Branch device, or VPN concentrator use cases. The latest 9106 models also support AOS-8 as a mobility controllers for WLAN services.
HPE Aruba Networking Central provides IT operational efficiency with unified cloud-based management and control of wired, wireless, and SD-WAN.

Design
Product colour	Black
Rack capacity	1U
Mounting type	Rack mounting
LED indicators	Power, Status

Features
Mean time between failures (MTBF)	280165 h

Protocols
DHCP client	Yes

Network
Ethernet LAN data rates	1000,10000 Mbit/s
3DES/AES throughput	20 Gbit/s
Firewall throughput	20000 Mbit/s

Security
Access Control List (ACL)	Yes
MAC address filtering	Yes

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Console port	RJ-45
Combo SFP ports quantity	4
SFP+ ports quantity	4
I/O ports	1x RJ45 (Management port); USB-C, RJ45 (Console port); 4x 10GbE SFP+ 4x Combo (SFP/1GbE copper)

Power
Power consumption (max)	185 W
Power consumption (typical)	185 W
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Output voltage	12 V
Heat dissipation	631 BTU/h

Weight & dimensions
Height	43.7 mm
Depth	351 mm
Width	442 mm
Weight	6.2 kg

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%

General
Product family	Aruba Networking

Certificates
Certification	CSA/UL 62368-1:2014; CSA/UL 62368-1:2019; EN/IEC 62328-1, 2nd edition; EN/IEC 62368-1, 3rd edition; FCC Part 15, Class A; EN55032, Class A; ICES-003, Class A; CNS13438, Class A; EN55035; EN 300 386; KS C 9832:2019; KS C 9835:2019; AS/NZS CISPR32 Class A; VCCI Class A
