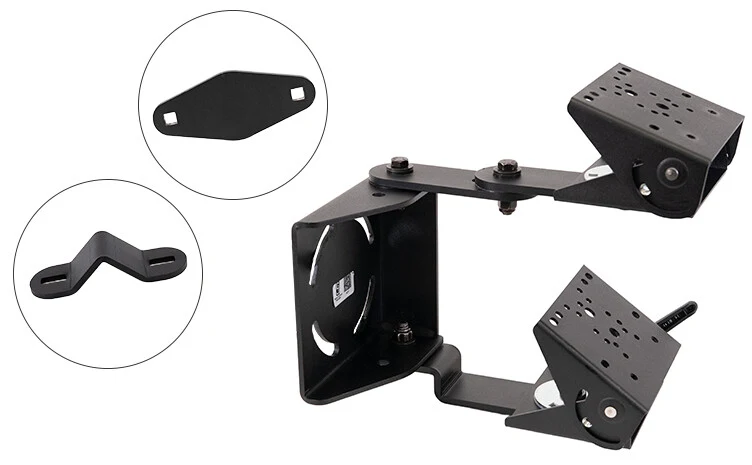

Gamber-Johnson Universal Guard Leg Mount – Dual Articulating Arm

• Improved with two rotating arms that allow for longer reach and the ability to push the dock closer to the guard leg.
• Increase warehouse safety by reducing potential blind spots caused by multiple mounts on forklift.
• Confidently secure your devices - mount is tested to Gamber-Johnson's rigorous material handling product standards to assure your devices will stay in place.
• One mount for the ensure majority forklift roll-form, rectangular, and round overhead guard legs.
• Includes a 4 in. diamond plate and 2-3 in. tube clamp
• Swing Arm allows for multiple device mounting. Tablets, printers, keyboards, etc. can be mounted in one location.
• Mounting Versatility: Mount sandwiches the guard leg and allows user to position the device at the desired height position
• Top arm can rotate and tilt a printer or tablet
• Bottom arm can rotate and tilt a keyboard or tablet

One Mount – Any Forklift.
With a mounting area of up to 4 inches wide by 5 inches deep or anywhere from 2-3 inches in diameter, this one mount can work on virtually any forklift guard leg in the market.

Clam Shell Features
- Clam Shell features the following hole patterns: AMPS, NEC and 75mm VESA\
- Tilt Capabilities: 90° forward allows for tablets to be easily mounted 26° aft movement with a positive stop at 26°
- Riveted design allows for smoother tilt movement
- To tilt the Clam Shell, simply loosen the adjustable lever, tilt to the desired position and then re-tighten the lever

Design
Mobile device type	Keyboard, Tablet/UMPC, Portable printer
Proper use	Forklift
Type	Active holder
Product colour	Black
Device mount type	Clamp mount
Material	Steel
Tilt adjustment	Yes
Rotating	Yes
Pattern	No pattern
Full motion	Yes
Fixed	No

Ergonomics
Tilt angle range	-90 - 26°
VESA mounting	Yes
Maximum VESA mount	75 x 75 mm

Weight & dimensions
Width	228.6 mm
Depth	254 mm
Height	228.6 mm
Weight	4.08 kg

Packaging data
Quantity per pack	1 pc(s)
