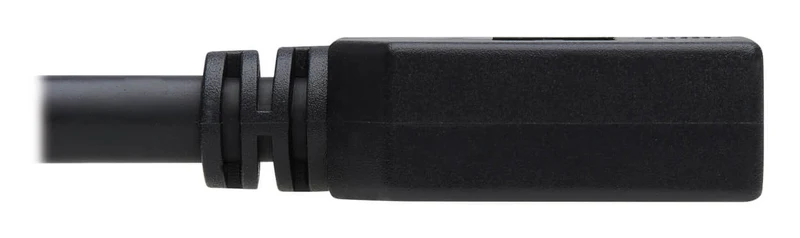

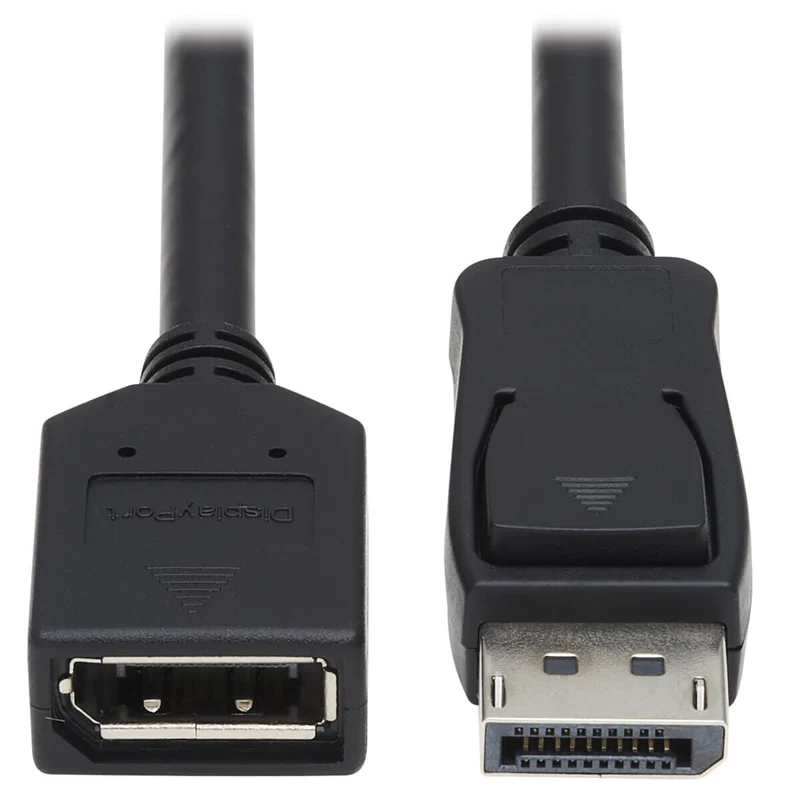

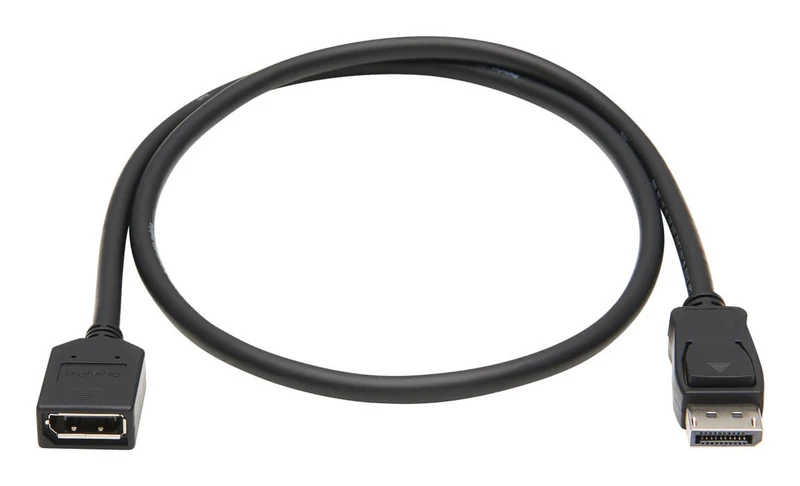

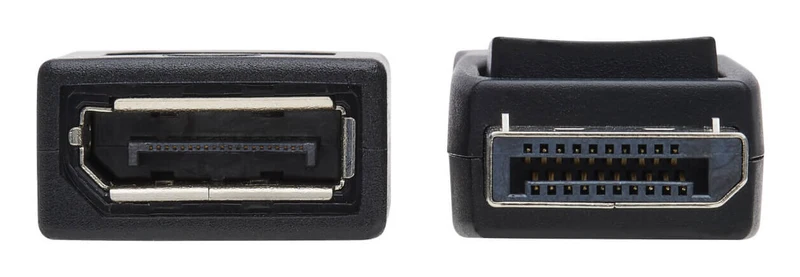

Eaton P579-003 DisplayPort Extension Cable with Latch, 4K @ 60 Hz, HDCP 2.2 (M/F), 3 ft. (0.91 m)

• Molded nickel-plated connectors with gold-plated contacts
• Supports DisplayPort v1.2, DPCP and HDCP 2.2
• Latching DisplayPort plug ensures secure connection
• Supports 4K x 2K video resolutions @ 60 Hz
• Smaller connector footprint than VGA or DVI

DisplayPort Extension Cable with Latch, 4K @ 60 Hz, HDCP 2.2 (M/F), 3 ft. (0.91 m)

Features
Cable length	0.91 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Female
Connector contacts plating	Nickel/Gold
Maximum resolution	3840 x 2160 pixels
Supported graphics resolutions	3840 x 2160
HDCP	Yes
DisplayPort Content Protection (DPCP)	Yes
Latching connectors	Yes
Product colour	Black
Jacket material	Polyvinyl chloride (PVC)

Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	10 - 80%

Certificates
Compliance certificates	RoHS

Packaging data
Package width	177.8 mm
Package depth	12.7 mm
Package height	228.6 mm
Package weight	60 g

Packaging content
Quantity per pack	1 pc(s)

• leaflet
