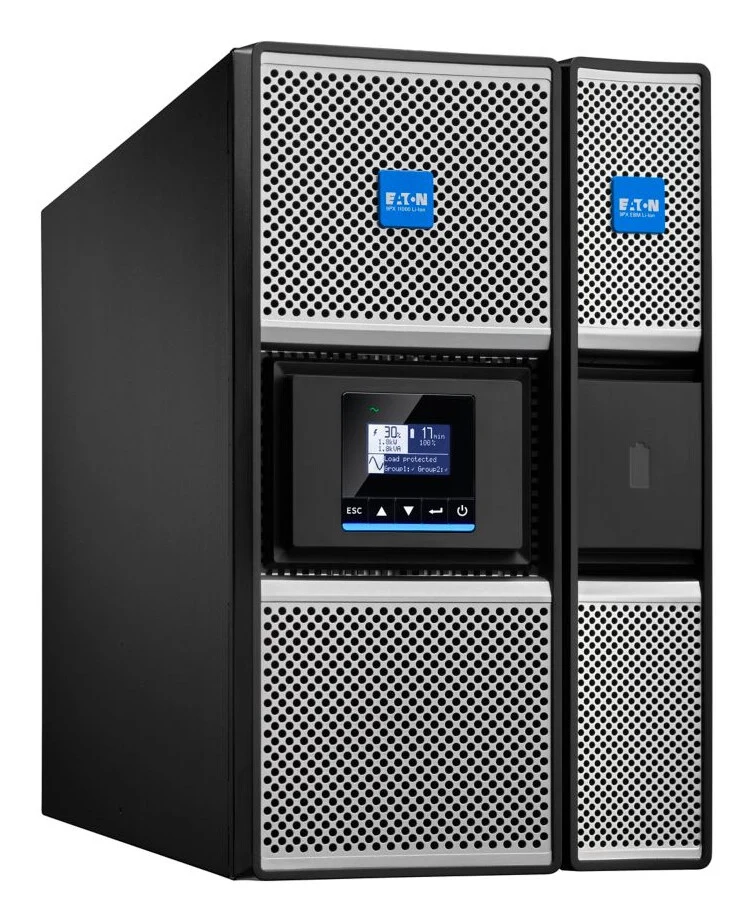

Eaton 9PX11KIRTNG2-L Model code: 9PX 11000i RT4U Netpack G2 Li-Ion

• Double-conversion (Online)
• 11 kVA 11000 W
• Waveform: Sine
• 16 AC outlet(s)
• Lithium-Ion (Li-Ion) 12 Ah
• Rackmount/Tower Black, Silver

Eaton 9PX Gen 2 Lithium UPS Netpack, 11000 VA, 11000 W, Input: Hardwired, Outputs: (8) C13, (8) C39, Hardwired, Rack/tower, 4U, Gigabit Network card included, Rack-mounting kit included.

Features
UPS topology	Double-conversion (Online)
Output power capacity	11 kVA
Output power	11000 W
Waveform	Sine
Input operation voltage (min)	176 V
Input operation voltage (max)	276 V
Input frequency	40 - 70 Hz
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Output voltage regulation	+/- 1%
Efficiency	97%
Input power factor	0.99
Noise level	37 dB
Auto shut-off	Yes

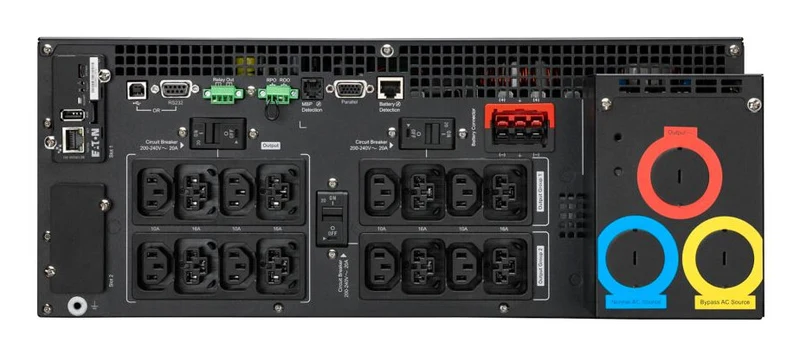

Ports & interfaces
AC outlet types	C39 coupler, C13 coupler
Power plug	Hardwire
AC outlets quantity	16 AC outlet(s)
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
Network card slot	Yes

Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	12 Ah
Hot-swap battery	No

Design
Form factor	Rackmount/Tower
Product colour	Black, Silver
Rack capacity	4U
Display type	LCD

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m

Sustainability
Doesn't contain	Lead, Mercury, Cadmium
Sustainability certificates	ENERGY STAR

Packaging content
Rack mount kit	Yes
Cables included	USB cable
Quick installation guide	Yes

Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Compliance certificates	Low Voltage Directive (LVD), CB, Electromagnetic Compatibility (EMC), RoHS, REACH, CE, cULus, UKCA, RCM
Certification	IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3

Weight & dimensions
Width	440 mm
Depth	724 mm
Height	174 mm
Weight	64.8 kg

Packaging data
Bracket	Yes
Management card included	Yes

Other features
Size (imperial)	48.3 cm (19")
