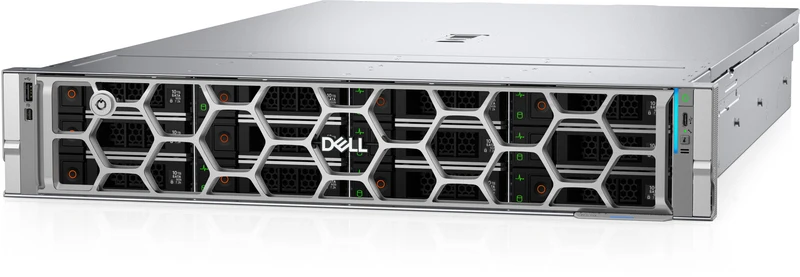

DELL R570 server 1.92 TB Rack (2U) Intel Xeon 6 6517P 3.2 GHz 32 GB DDR5-SDRAM 1100 W

• No OS
• Intel Xeon 6 6517P (72MB Cache, 3.2GHz)
• 32GB DDR5-SDRAM (1 x 32) & 1920GB SSD
• iDRAC10, Enterprise 17G

Simple, Scalable and Efficient Solutions
The Dell PowerEdge R570 is a 2U, one-socket rack server engineered for high-performance computing with exceptional power efficiency and balanced performance, driving cost savings and boosting data center productivity.

Processor
Processor manufacturer	Intel
Processor family	Intel Xeon 6
Processor model	6517P
Processor frequency	3.2 GHz
Processor boost frequency	4.2 GHz
Processor cores	16
Processor cache	72 MB
Number of processors installed	1
Thermal Design Power (TDP)	190 W
System bus rate	24 GT/s
Memory clock speeds supported by processor	6400 MHz
Memory types supported by processor	DDR5-SDRAM
Processor threads	32

Memory
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Buffered memory type	Registered (buffered)
Memory ranking	2
Memory layout (slots x size)	1 x 32 GB
Memory slots	16x DIMM
Memory data transfer rate	6400 MT/s
Maximum internal memory	1 TB

Storage
Total storage capacity	1.92 TB
Number of SSDs installed	2
SSD capacity	960 GB
SSD interface	SATA III
Supported SSD sizes	2.5"
SSD size	2.5"
Number of SSDs supported	16
RAID support	Yes
Supported RAID controllers	PERC H965i Controller, Front, DC-MHS
Hot-Plug support	Yes
Drive writes per day (DWPD)	1
Optical drive type	No

Ports & interfaces
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
VGA (D-Sub) ports quantity	1

Expansion slots
PCI Express x16 (Gen 5.x) slots	2

Design
Chassis type	Rack (2U)
Product colour	Black
Bezel	Yes

Performance
Remote administration	iDRAC10, Enterprise 17G

Software
Operating system installed	No
Compatible operating systems	Canonical Ubuntu Server LTS RedHat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi Windows Server Windows Server Datacenter

Power
Redundant power supply (RPS) support	Yes
Power supply	1100 W
Number of redundant power supplies installed	2
Power supply input voltage	100 - 240 V

Certificates
80 PLUS certification	80 PLUS Titanium

Carbon footprint
PAIA version	PAIA 1.4.7, 2025
Carbon emissions, end-of-life (kg of CO2e)	37.41
Carbon emissions, energy usage (kg of CO2e)	537.46
Carbon emissions, logistics (kg of CO2e)	209.5
Carbon emissions, manufacturing (kg of CO2e)	463.88
Total carbon emissions, standard deviation (kg of CO2e)	101
Total carbon footprint (kg of CO2e)	1247

Weight & dimensions
Width	482 mm
Height	86.8 mm

Packaging content
Packaging content	2x Rack Power Cord 2M (C13/C14 12A) - FGA Only 2U Combo Drop-In/Stab-In Rails,Riser Config 5

Other features
Target workload	Read Intensive (RI)
Bytes per sector	512e
Data transfer rate	6 Gbit/s
Open Compute Project (OCP)	1x16 FLOP, 1x16 Onboard, 1 Rear Blank
