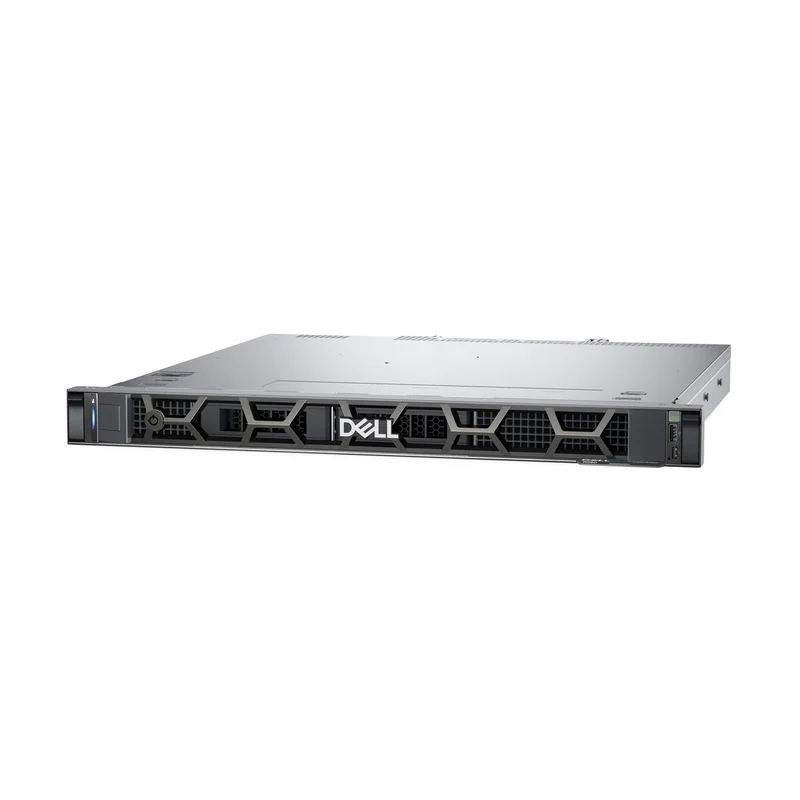

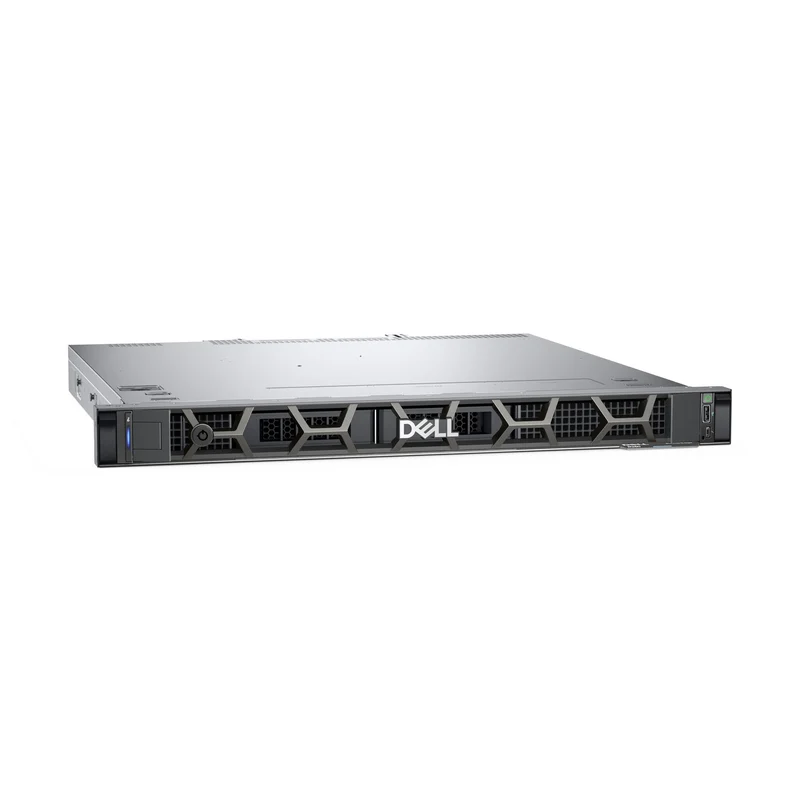

DELL PowerEdge R260 server 2.4 TB Rack (1U) Intel Xeon 6 6315P 2.8 GHz 16 GB DDR5-SDRAM 700 W

• No OS
• Intel Xeon 6 6315P (12MB Cache, 2.8GHz)
• 16GB DDR5-SDRAM (1 x 16) & 2400GB HDD
• iDRAC9, Enterprise 16G

The 1U, single-socket Dell PowerEdge R260 is a short-depth form factor for customers desiring flexibility, affordability and processing power.

Processor
Processor manufacturer	Intel
Processor family	Intel Xeon 6
Processor model	6315P
Processor frequency	2.8 GHz
Processor boost frequency	5.2 GHz
Performance cores	4
Processor cores	4
Processor cache	12 MB
Number of processors installed	1
Thermal Design Power (TDP)	55 W
System bus rate	16 GT/s
Memory clock speeds supported by processor	4800 MHz
Memory types supported by processor	DDR5-SDRAM
Processor threads	4

Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Buffered memory type	Unregistered (unbuffered)
Memory layout (slots x size)	1 x 16 GB
ECC	Yes
Memory slots	4x DIMM
Memory data transfer rate	5600 MT/s
Maximum internal memory	128 GB

Storage
Total storage capacity	2.4 TB
Number of HDDs installed	2
HDD capacity	1.2 TB
HDD interface	Serial Attached SCSI (SAS)
HDD speed	10000 RPM
HDD size	2.5"
Number of HDDs supported	6
Supported HDD sizes	2.5"
RAID support	No
Supported RAID controllers	PERC H355 Adapter LP
Hot-Plug support	Yes
Optical drive type	No

Network
Ethernet interface type	Gigabit Ethernet
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes
LAN controller	Broadcom 5720

Ports & interfaces
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Design
Chassis type	Rack (1U)
Product colour	Black
Bezel	Yes

Performance
Remote administration	iDRAC9, Enterprise 16G
Trusted Platform Module (TPM)	Yes

Software
Operating system installed	No
Compatible operating systems	Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi

Power
Redundant power supply (RPS) support	No
Power supply	700 W
Number of main power supplies	1
Power supply input voltage	200 - 240 V

Operational conditions
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m

Certificates
80 PLUS certification	80 PLUS Titanium

General
Product family	PowerEdge

Carbon footprint
PAIA version	PAIA 1.3.2, 2024
Carbon emissions, end-of-life (kg of CO2e)	9.5
Carbon emissions, energy usage (kg of CO2e)	541.5
Carbon emissions, logistics (kg of CO2e)	95
Carbon emissions, manufacturing (kg of CO2e)	304
Total carbon emissions, standard deviation (kg of CO2e)	711
Total carbon footprint (kg of CO2e)	950

Weight & dimensions
Width	482 mm
Height	42.8 mm

Packaging content
Packaging content	Riser Config 1, Gen4 Riser European Power Cord 220V

Other features
Bytes per sector	512n
Data transfer rate	12 Gbit/s
