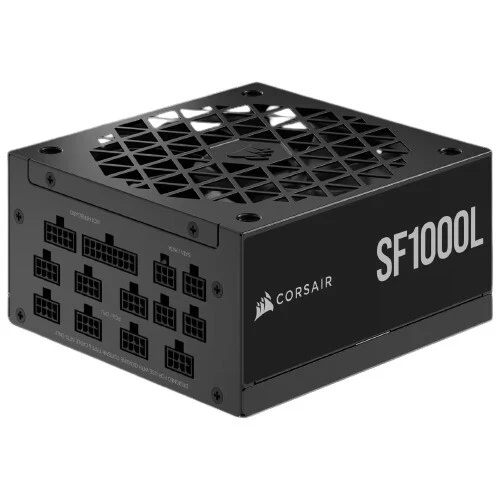

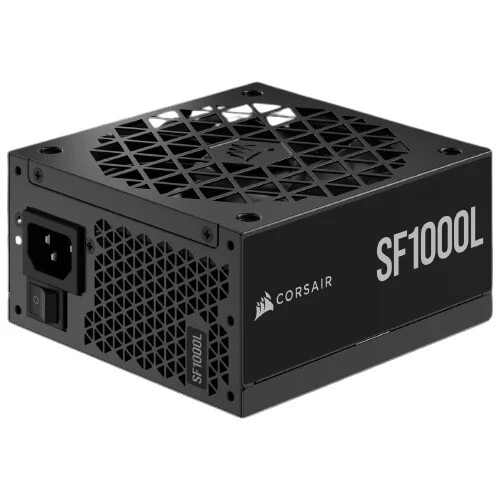

Corsair RPS0156 power supply unit 1000 W 24-pin ATX SFX-L Black

• FULLY MODULAR LOW-NOISE SFX POWER SUPPLIES
• YOUR SMALL FORM X-FACTOR

SF-L SERIES™

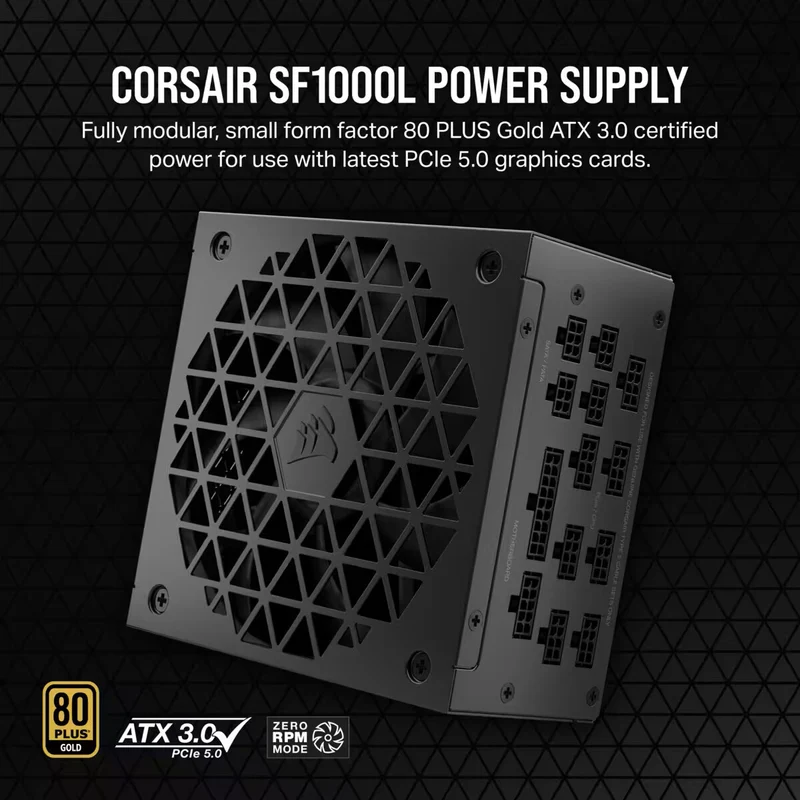

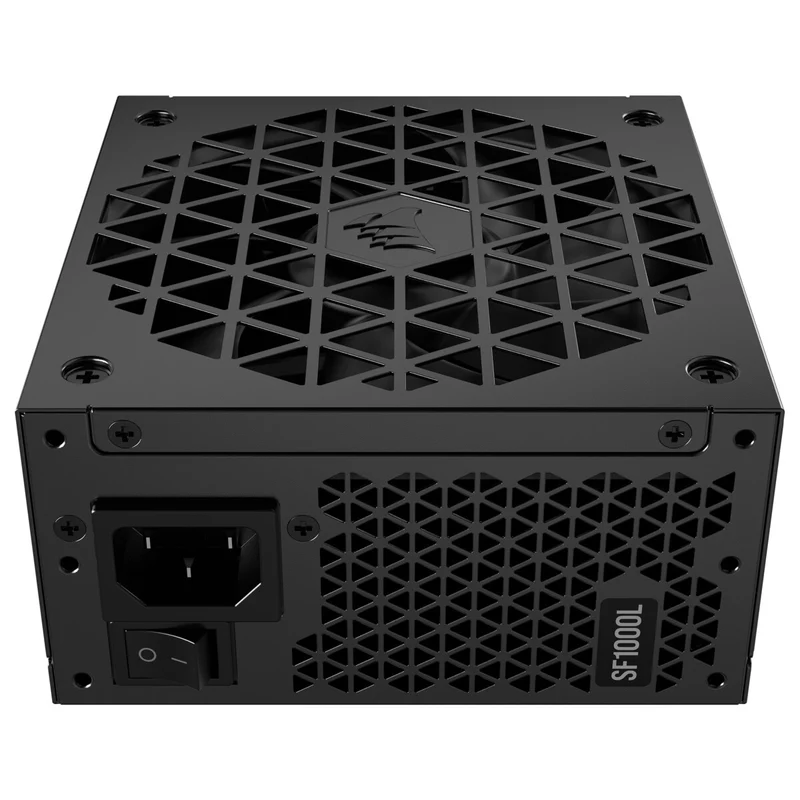

SF1000L POWER SUPPLY
FULLY MODULAR LOW-NOISE SFX POWER SUPPLIES
YOUR SMALL FORM X-FACTOR
CORSAIR SF-L Series Fully Modular SFX Power Supplies with ATX 3.0 and PCIe 5.0 compliance provide the continuous high wattages demanded by the latest PC hardware, all in a space-saving SFX-L form-factor.

LOOKS CAN BE DECEIVING

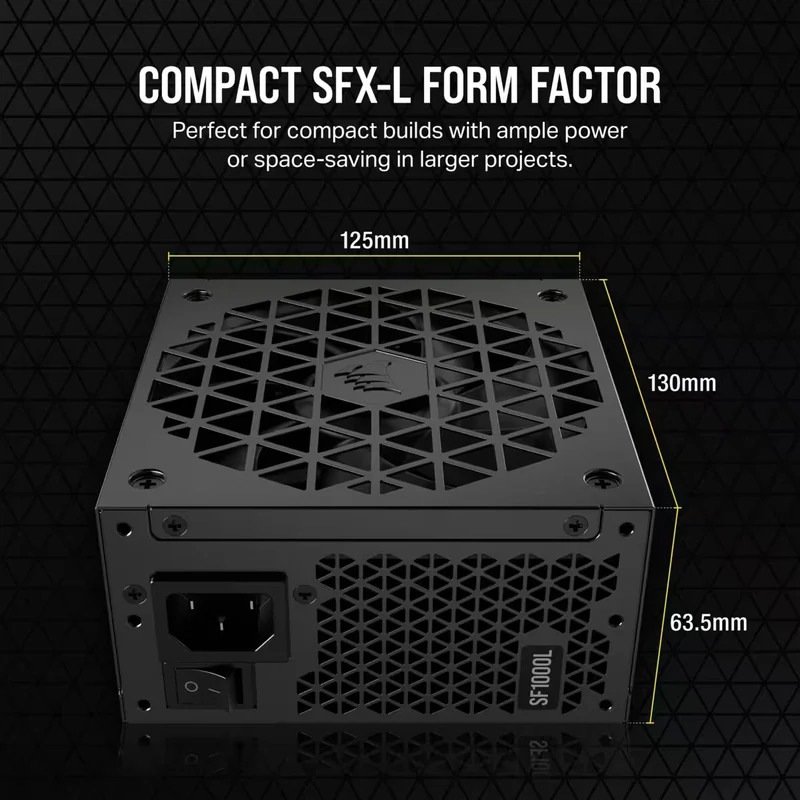

COMPACT SFX-L FORM FACTOR
Ideal for small form factor (SFF) PCs that don’t skimp on power, or for saving space in a larger build, SF-L Series PSUs pack a huge punch for their size.

ON THE CUTTING-EDGE
ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF-L Series PSUs are formally certified for ATX 3.0 compliance.

PCIe 5.0 12VHPWR GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.

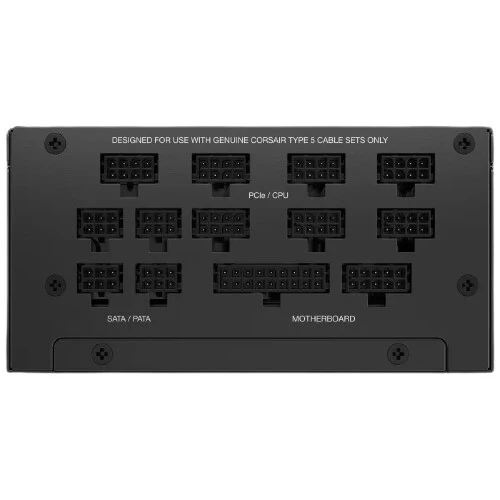

FULLY MODULAR
CORSAIR TYPE 5 MICRO-FIT CONNECTORS
Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space.

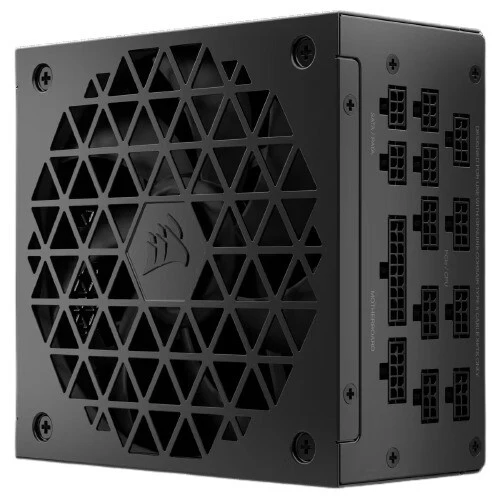

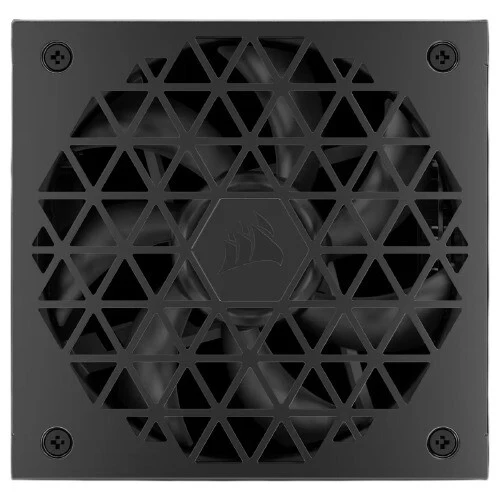

120mm FAN WITH ZERO RPM MODE SUPPORT
Cooled by a powerful and quiet 120mm rifle bearing fan, with support for Zero RPM mode to ensure your PSU stays virtually silent when not under high load.

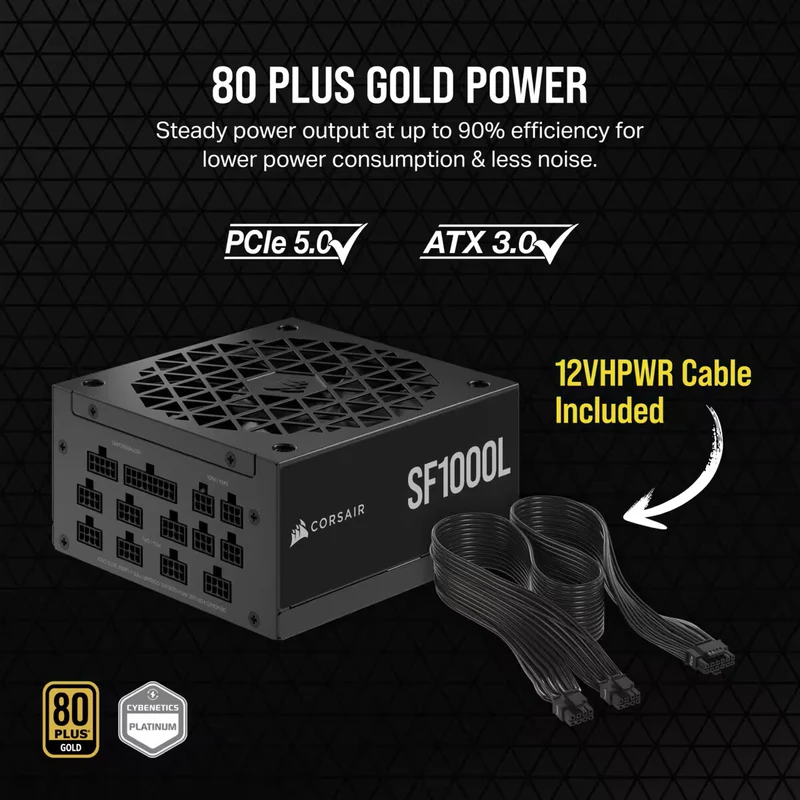

80 PLUS GOLD CERTIFIED
Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.

105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese primary electrolytic capacitors for unwavering power and reliability.

TAKES THE HEAT
40°C MAXIMUM OPERATING TEMPERATURE
Capable of 100% output at temperatures up to 40°C, for reliable power even under high-stress conditions.

SEVEN-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.

Power
Total power	1000 W
AC input voltage	100 - 240 V
AC input frequency	47 - 63 Hz
Input current	12 - 6 A
Combined power (+3.3V)	150 W
Combined power (+12V)	1000 W
Combined power (+5V)	150 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	83.3 A
Max output current (+5V)	20 A
Max output current (+5Vsb)	3 A
Power protection features	Over voltage, Overheating, Short circuit

Ports & interfaces
Motherboard power connector	24-pin ATX
Motherboard power cable length	30 cm
Number of PATA power connectors	3
Number of SATA power connectors	12
SATA power cable length	100,115 mm
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (6+2 pin)	5
ATX power connector (12+4 pin)	No
PCI Express connector	Yes
Cabling type	Fully-Modular

Performance
Purpose	PC
Power supply unit (PSU) form factor	SFX-L
80 PLUS certification	80 PLUS Gold
Supported motherboard form factors	ATX
ATX version	3.0
EPS version	2.92
Silent mode	Yes
Noise level	43 dB
Bearing technology	FDB
Mean time between failures (MTBF)	100000 h

Design
Product colour	Black
Cooling type	Active
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan location	Top
Illumination	No

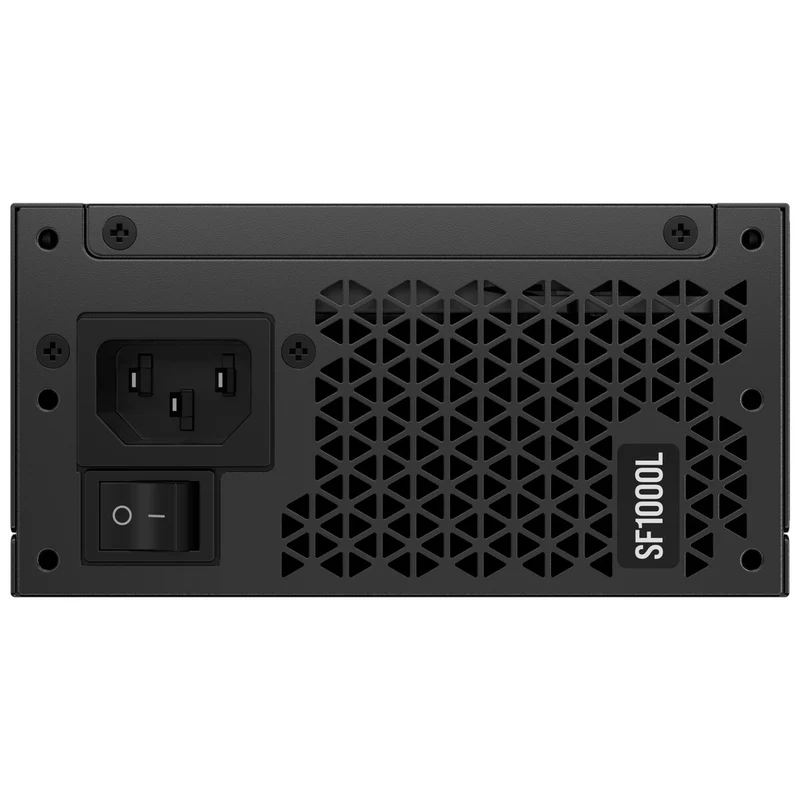

On/off switch	Yes

Packaging content
Cables included	AC, DC
Cable tie(s) included	Yes

Weight & dimensions
Width	125 mm
Depth	130 mm
Height	63.5 mm
Weight	1.14 kg
