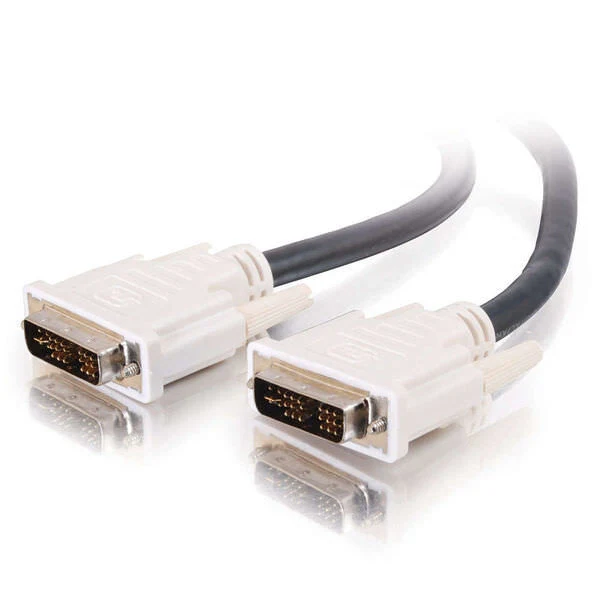

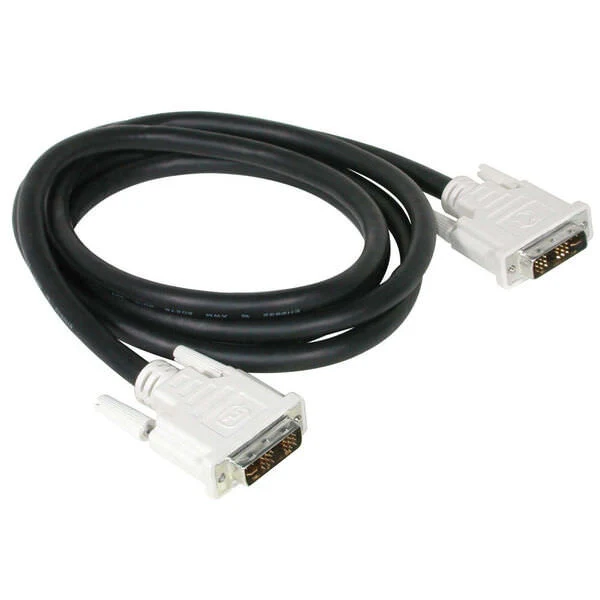

C2G 81201 DVI cable 3 m DVI-I Black, White

• 3 m
• DVI-I Male 18+5
• DVI-I Male 18+5
• Plug and Play
• Black, White

Product Description
This precision-engineered cable is fully compliant with the DVI standard defined by DDWG (Digital Display Working Group). The DVI-I single link configuration provides enough bandwidth for resolutions up to 1600 x 1200 pixels and allows high speed transmission up to 4.95 Gbps. Three analogue 30 AWG coaxial lines enable high speed analogue transmission.

Tri-shielded undermould with dual Mylar® foil and braid shield protects against unwanted EMI/RFI interference. Each coax line is individually wrapped in foam-polyolefin insulation and overwrapped with a braided tinned copper shield. 28 AWG copper conductors are individually insulated in hard-density polypropylene to minimize crosstalk, and ensure high speed, error-free transmission. Gold-plated contacts provide full conductivity with no data loss. PC and Mac® compatible cable supports hot-plugging of DVI display devices. PC-99 colour-coded: white.

Features
Cable length	3 m
Connector 1	DVI-I
Connector 2	DVI-I
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 pinout	18+5
Connector 2 pinout	18+5
Product colour	Black, White
Data transfer rate	4.95 Gbit/s
Maximum resolution	1600 x 1200 pixels
AWG wire size	30
Connector contacts plating	Gold
Plug and Play	Yes

Weight & dimensions
Weight	382 g

Packaging data
Quantity per pack	1 pc(s)

Logistics data
Harmonized System (HS) code	84733080
