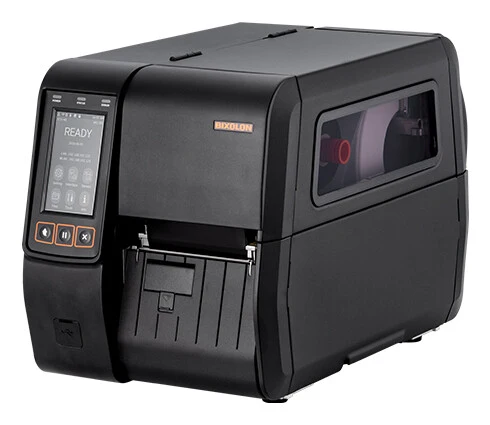

Bixolon XT5-43 label printer Direct thermal / Thermal transfer 300 x 300 DPI 254 mm/sec Wired Ethernet LAN

• Direct thermal / Thermal transfer
• 300 x 300 DPI
• Maximum printing width: 10.6 cm Print speed: 254 mm/sec
• Connectivity technology: Wired
• USB port Ethernet LAN
• Display: LCD 10.9 cm (4.3") Colour display Backlight display
• 14 kg

Providing a consistent look and feel to BIXOLON's newer label printer lineups, the mid-tier Industrial class 4-inch (114mm) label printer supports UHF RFID print and encode capability. The XT5-40 series offers such key features as a USB Host, wireless; WLAN or MFi certified Bluetooth, 1Gigabit Ethernet, and print speeds up to 14 ips (356mm/sec). Choices of up to 600 dpi resolution for high definition output and 3.5 inch colour or 4.3 inch full-colour touch LCD display, plus easy in-field upgrades of media handling options – peel dispense and cutter, and factory-installed rewind configurations means that there is a choice for all your printing needs. Offering
The XT5-40 series is an industrial workhorse that ensures downtime is kept to a minimum thanks to its intuitive media and ribbon loading; The printer can be easily controlled thanks to the simple menu layout but can be also be viewed and controlled remotely thanks to the XPM device management software.

Printing
Maximum printing width	10.6 cm
Print speed	254 mm/sec
Maximum resolution	300 x 300 DPI
Print technology	Direct thermal / Thermal transfer

Paper handling
Media thickness	0.06 - 0.30 mm
Maximum roll diameter	20.3 cm
Core diameter	2.54 cm
Ribbon length	450 m
Ribbon width	11 cm

Ports & interfaces
Optional connectivity	Serial (RS-232)
USB 2.0 ports quantity	2
USB port	Yes
Ethernet LAN	Yes
Connectivity technology	Wired

Performance
Flash memory	512 MB
Internal memory	512 MB
Page description languages	DPL, EPL, SLCS, ZPL II

Design
Control type	Touch
Backlight display	Yes
Colour display	Yes
Display diagonal	10.9 cm (4.3")
Display	LCD
Built-in display	Yes
Product colour	Black

Power
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V

System requirements
Linux operating systems supported	Yes
Windows operating systems supported	Yes
Mobile operating systems supported	Android
Mac operating systems supported	Yes

Operational conditions
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Operating relative humidity (H-H)	10 - 80%

Weight & dimensions
Weight	14 kg
Height	324 mm
Depth	490 mm
Width	269 mm

Logistics data
Harmonized System (HS) code	84433210

Technical details
Sustainability certificates	ENERGY STAR

Other features
Emulations	SLCS™, BPL-Z™ (ZPLII), BPL-E™ (EPL), BPL-D™ (DPL)
