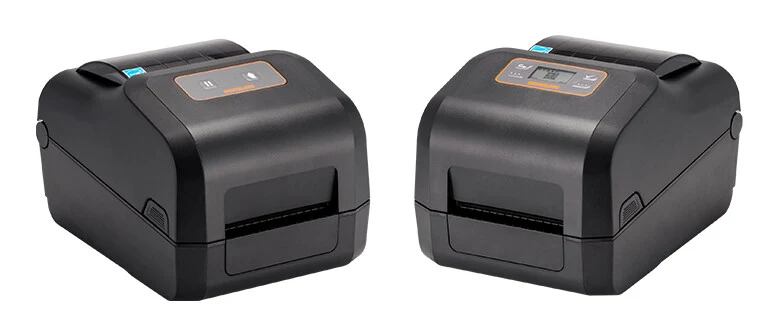

Bixolon XD5-40t label printer Direct thermal / Thermal transfer 203 x 203 DPI 152 mm/sec Wired & Wireless Wi-Fi

• Direct thermal / Thermal transfer
• 203 x 203 DPI
• Maximum printing width: 10.8 cm Print speed: 152 mm/sec
• Built-in barcodes: 1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39
• Connectivity technology: Wired & Wireless
• USB port Wi-Fi
• Display: LCD 200 x 100 pixels
• 2.48 kg

Rugged and feature-rich

The XD5-40t is a 4-inch (118mm) mid-level Thermal Transfer Desktop Label Printer, featuring a rugged, compact, clamshell design and all-inclusive software features ideal for barcode and labelling applications for the Transport and Logistics, Manufacturing, Healthcare and Retail industries. Available as the XD5-40t (203dpi) and XD5-43t (300dpi) options, the XD5-40t’s standard model (XD5-40t) offers accelerated data processing and print speeds of up to 6 ips (152mm/sec), while boasting enhanced memory space of up to 256MB SDRAM and 256 MB Flash.

Providing printer flexibility, the XD5-40t offers a toolless field-installable Peeler, Auto Cutter and external paper supply. With an Optional LCD display, an adjustable paper guide and media roll diameter space of up to 127mm, suitability for both 1/2-inch and 1-inch core ribbons (74 m and 300m ribbon length) and enhanced ribbon handling with the new ribbon left-right balance adjustment. Alongside by Smart Media Detection™ for the automatic media detection of Gap, Black Mark, Continuous or Notch media formats, all back with a 3-year warranty as standard.

Boasting multiple connectivity options, the XD5-40t comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The barcode and label is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file), alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.

Printing
Maximum printing width	10.8 cm
Print speed	152 mm/sec
Number of printable dots	8 dot
Maximum resolution	203 x 203 DPI
Print technology	Direct thermal / Thermal transfer

Paper handling
Media thickness	0.06 - 0.2 mm
Maximum label width	11.8 cm
Maximum roll diameter	12.7 cm
Ribbon length	300 m
Ribbon width	11 cm
Autocutter	Yes

Ports & interfaces
RS-232 ports	1
USB port	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi	Yes
Ethernet LAN	No
Connectivity technology	Wired & Wireless

Performance
Built-in barcodes	1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39
Flash memory	128 MB
Internal memory	64 MB

Design
Control type	Buttons
Display resolution	200 x 100 pixels
Display	LCD
Built-in display	Yes
Product colour	Black

Power
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V

System requirements
Linux operating systems supported	Yes
Windows operating systems supported	Yes
Mobile operating systems supported	Android, iOS
Mac operating systems supported	Yes

Operational conditions
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Operating relative humidity (H-H)	25 - 80%

Weight & dimensions
Weight	2.48 kg
Height	188 mm
Depth	284 mm
Width	210 mm

Packaging content
Cables included	USB

Technical details
Sustainability certificates	ENERGY STAR
