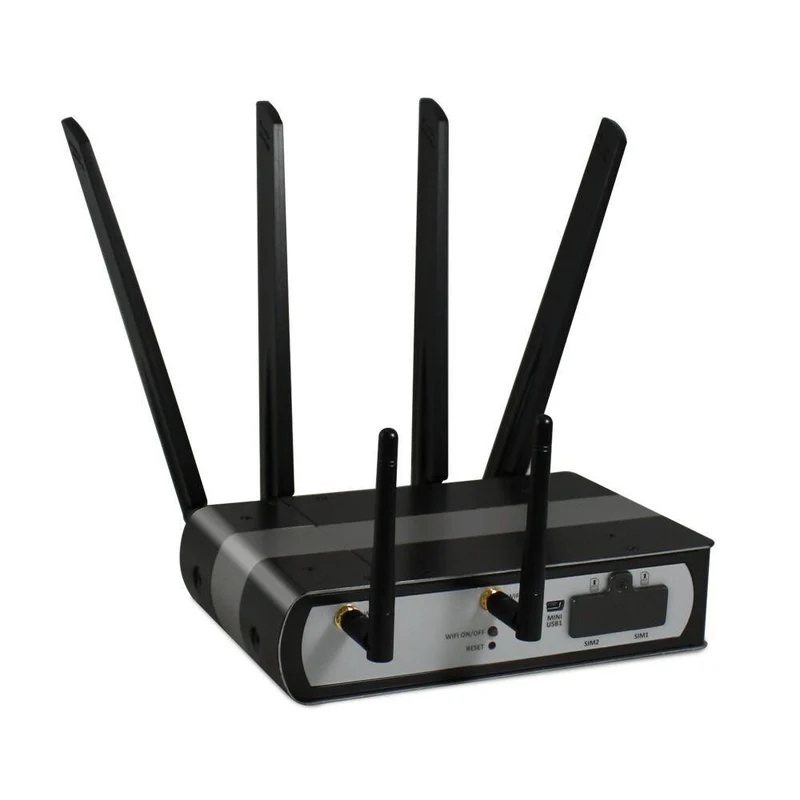

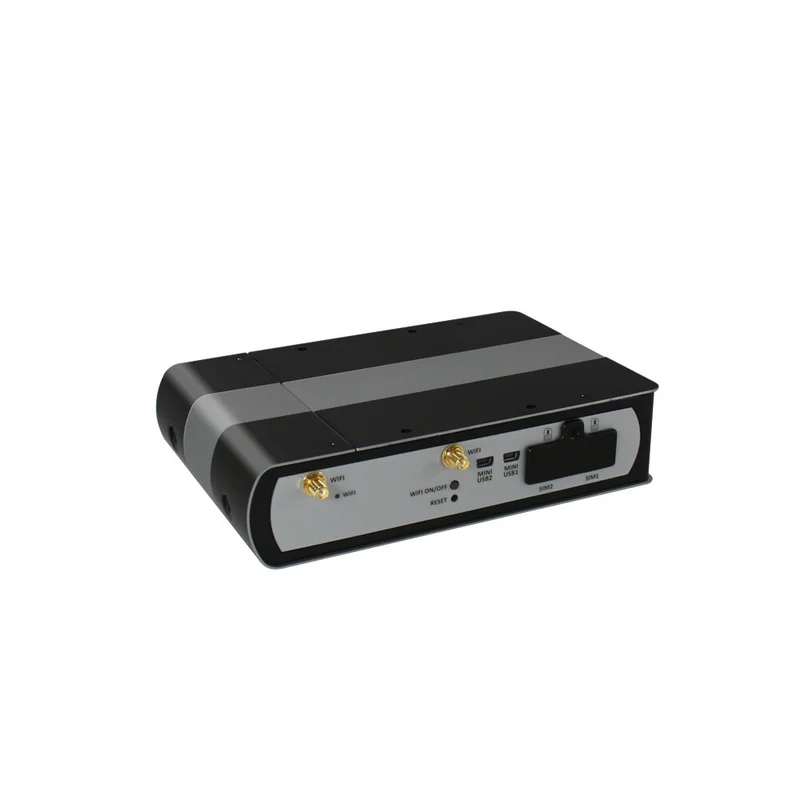

Billion M500-D wireless router Gigabit Ethernet Single-band (2.4 GHz) 4G Black, Grey

• Tabletop router Black, Grey
• Single-band (2.4 GHz) Wi-Fi 4 (802.11n) 300 Mbit/s
• Gigabit Ethernet
• Ethernet WAN SIM card slot
• Ethernet LAN (RJ-45) ports: 4
• USB port

High Availability and Network Resilience
The M500 is a feature rich industrial class router coupled with robust network processing and Multi-WAN connectivity, purpose built for network resilience and business continuity. The platform support dual SIM and dual LTE radios for carrier redundancy or load balancing between carriers networks. In the event of a connectivity failure of the primary WAN interface, traffic is automatically redirected to the secondary WAN interface. The M500 will also fallback when the primary interface connection is restored. This functionality operates regardless of whether the primary connection is LTE or a wired connection such as fiber, cable or DSL. Load balancing and traffic prioritization mechanisms can be enabled to enhance failover performance and maximize bandwidth utilization for critical applications delivery.

Carrier-grade Wireless LAN
The M500 integrates a 802.11n access point supporting data rates of up to 300Mbps. Security functionality includes: WEP 64/128, WPA(PSK), WPA2(PSK), Mixed WPA/WPA2(PSK), SSID broadcast disable, Wireless MAC address filtering and SSID with Client Isolation to enhance the level of transmission security and access control over the Wireless LAN. Allowing for Wi-Fi Hotspot functionality anywhere there is cellular signal. The captive portal enables highly secure connectivity with multiple authentication options and extensive controls for access and bandwidth management.

WAN connection
Ethernet WAN	Yes
SIM card slot	Yes

Wireless LAN features
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	Wi-Fi 4 (802.11n)

Network
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11n
VPN Passthrough	Yes

Mobile network
Mobile network generation	4G
4G	Yes
3G	Yes
4G standard	LTE

Ports & interfaces
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	2
DC-in jack	Yes

Security
Security algorithms	64-bit WEP, 128-bit WEP, SSID, WPA-PSK, WPA2-PSK

Design
Product type	Tabletop router
Product colour	Black, Grey

Packaging content
Quick start guide	Yes

Antenna
Antenna design	External
Antennas quantity	6
Detachable antenna(s)	Yes

Power
Power source type	DC

Operational conditions
Operating relative humidity (H-H)	20 - 95%
Operating temperature (T-T)	-40 - 60 °C

Weight & dimensions
Height	46.7 mm
Depth	132.4 mm
Width	198.8 mm
