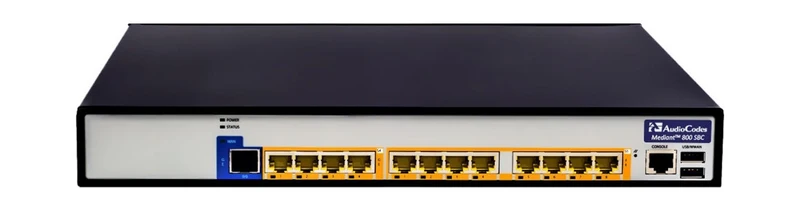

AudioCodes Mediant 800 SBC gateway/controller 10, 100, 1000 Mbit/s

• 10,100,1000 Mbit/s
• Desktop/Rack mounting
• Black, Grey

The AudioCodes Mediant 800 enterprise session border controller (E-SBC) and media gateway offers a complete connectivity solution for small-to-medium sized enterprises. Supporting up to 124 voice channels in a 1U platform, the Mediant 800 provides versatile connectivity between TDM and VoIP networks.

The Mediant 800 connects IP-PBXs to any SIP trunking service provider, scaling to 400 concurrent sessions. It offers superior performance in connecting any SIP to SIP environment, legacy TDM-based PBX systems to IP networks, and IP-PBXs to the PSTN.

Design
Product colour	Black, Grey
Rack capacity	1U
Mounting type	Desktop/Rack mounting

Features
Voice codecs	AMR, G.722.2, OPUS, Silk, iLBC

Network
Ethernet LAN data rates	10,100,1000 Mbit/s

Security
Security algorithms	HTTPS, SRTP, SSH, TLS
Authentication method	RADIUS
Firewall security	Yes

Ports & interfaces
Interface	4 FXS/FXO
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	12

Power
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Input current	1.5 A

Weight & dimensions
Size (imperial)	48.3 cm (19")
Depth	320 mm
Width	345 mm
Weight	2.7 kg

Operational conditions
Operating temperature (T-T)	5 - 40 °C
