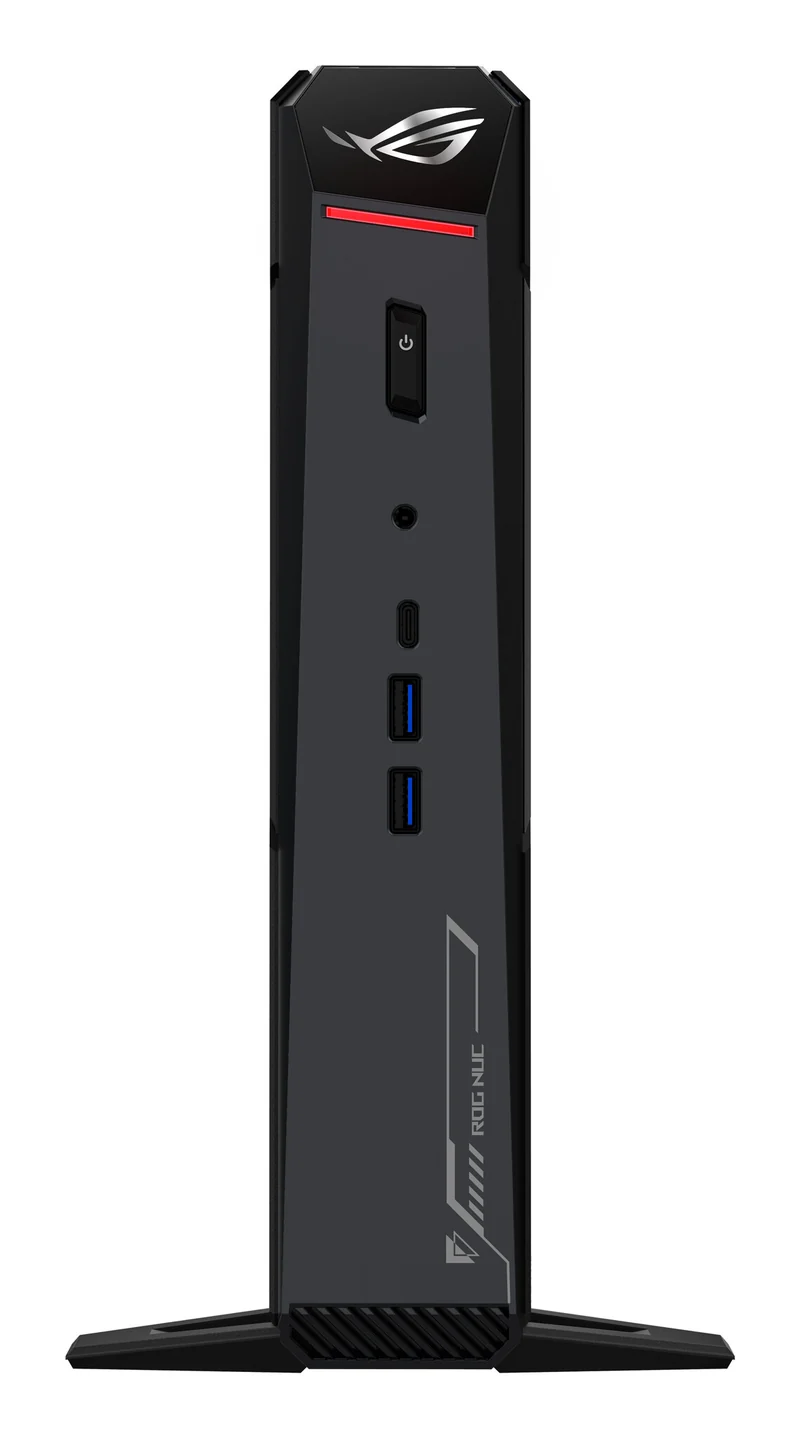

ASUS ROG NUC RNUC15JNK7X569A3 Intel Core Ultra 7 255HX 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5060 Windows 11 Mini PC Black

• Windows 11 64-bit
• Intel Core Ultra 7 255HX (30MB Cache)
• NVIDIA GeForce RTX 5060
• 16GB (6400MHz) DDR5-SDRAM & 1000GB SSD

Gaming Redefined
Power Meets Precision

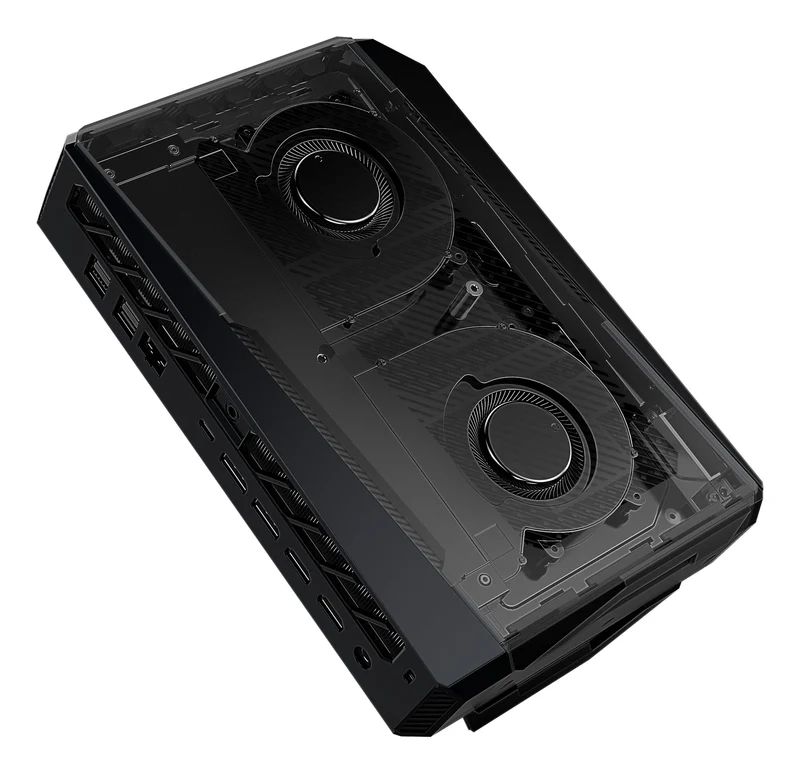

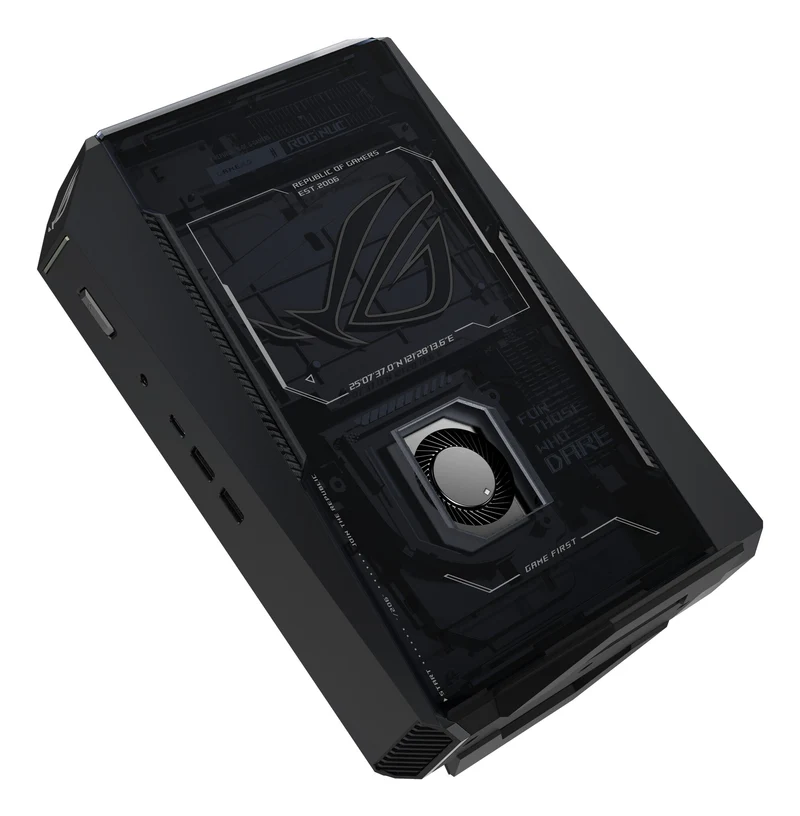

Unlock new gaming horizons with ROG NUC (2025), powered by the Intel® Core™ Ultra processors (Series 2) ARL-HX and up to NVIDIA® GeForce RTX™ 5080 Laptop GPU. Equipped with triple fan cooling and support for four 4K displays, this compact powerhouse delivers unprecedented performance.

Processor
Processor base power	55 W
Maximum turbo power	160 W
Processor cache	30 MB
Efficient-core base frequency	1.8 GHz
Performance-core base frequency	2.4 GHz
Efficient-core Max Turbo Frequency	4.5 GHz
Performance-core Max Turbo Frequency	5.2 GHz
Efficient cores	12
Performance cores	8
Processor boost frequency	5.2 GHz
Processor threads	20
Processor cores	20
Processor model	255HX
Processor generation	Intel Core Ultra (Series 2)
Processor family	Intel Core Ultra 7
Processor manufacturer	Intel

Neural processor unit (NPU)
GPU performance up to	8 TOPs
NPU performance up to	13 TOPs
Total processor performance up to	33 TOPs
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Windows Studio effects support	Yes
Sparsity support	Yes
Neural processor unit (NPU)	Intel AI Boost

Memory
Memory clock speed	6400 MHz
Internal memory type	DDR5-SDRAM
Maximum internal memory	96 GB
Internal memory	16 GB

Storage
SSD form factor	M.2
SSD interface	PCI Express 4.0
NVMe	Yes
SSD capacity	1 TB
Number of SSDs installed	1
Total SSDs capacity	1 TB
Storage media	SSD
Optical drive type	No
Total storage capacity	1 TB

Graphics
On-board graphics card model	Intel® Graphics
On-board graphics card family	Intel® Graphics
On-board GPU manufacturer	Intel
Number of discrete graphics cards	1
Discrete graphics memory type	GDDR7
Discrete graphics card memory	8 GB
Discrete graphics card model	NVIDIA GeForce RTX 5060
Discrete GPU manufacturer	NVIDIA
On-board graphics card	Yes
Discrete graphics card	Yes

Network
Bluetooth version	5.4
Bluetooth	Yes
WLAN controller model	Intel Wi-Fi 7 BE200
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller manufacturer	Intel
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Ethernet LAN	Yes

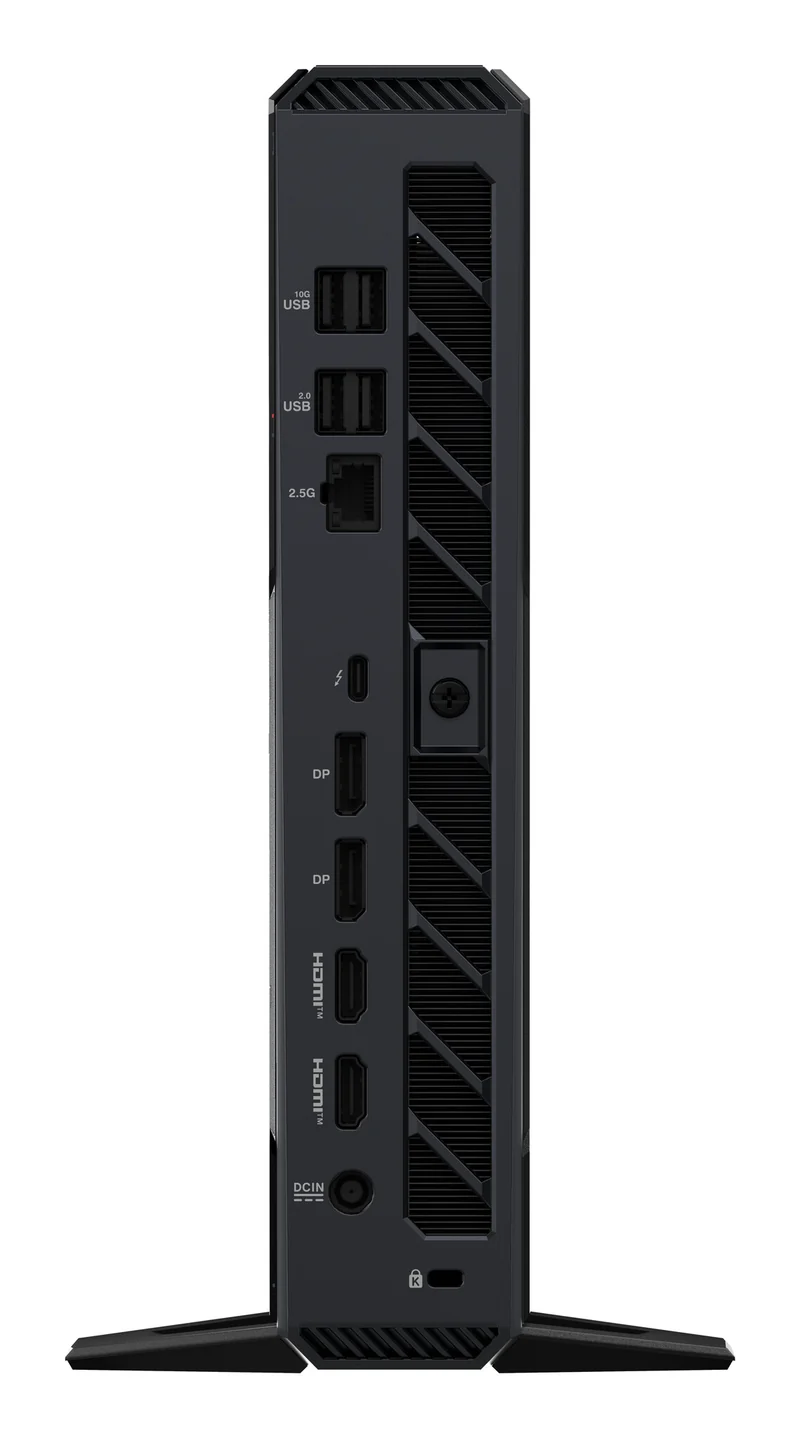

Ports & interfaces
Number of rear USB ports	5
Number of front USB ports	3
DC-in jack	Yes
Combo headphone/mic port	Yes
Ethernet LAN (RJ-45) ports	1
DisplayPort version	1.4a
DisplayPorts quantity	2
HDMI version	2.1
HDMI ports quantity	2
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1

Design
Product colour	Black
Cable lock slot type	Kensington
Cable lock slot	Yes
Placement supported	Horizontal/Vertical
Chassis type	Mini PC

Performance
Market positioning	Gaming
Product type	Mini PC

Software
Operating system architecture	64-bit
Operating system installed	Windows 11

Weight & dimensions
Weight	3.12 kg
Height	56.5 mm
Depth	187.7 mm
Width	282.4 mm

Packaging content
Display included	No

General
Product family	ROG
Product series	NUC
