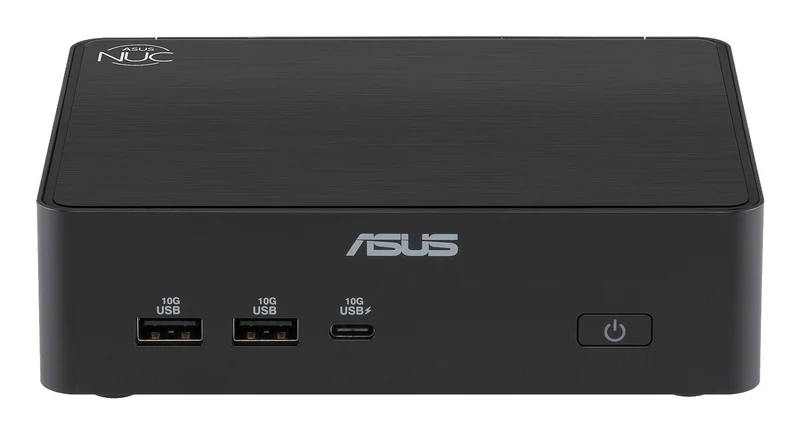

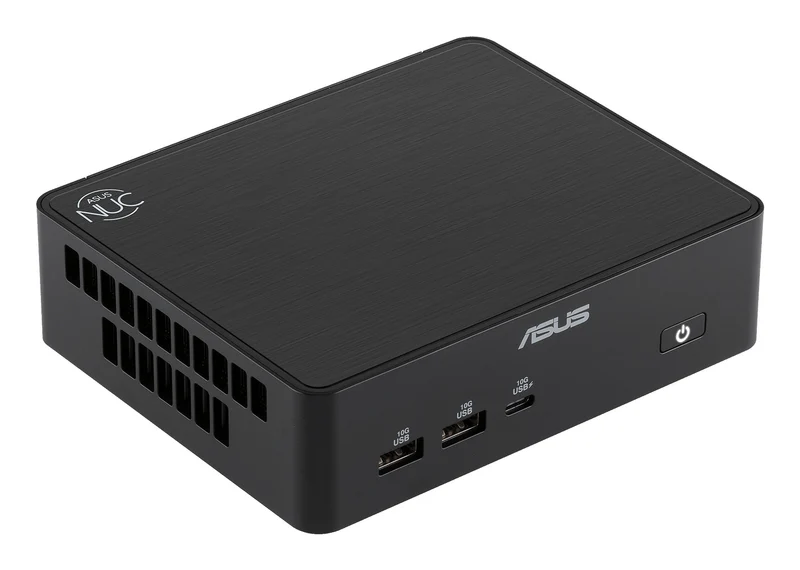

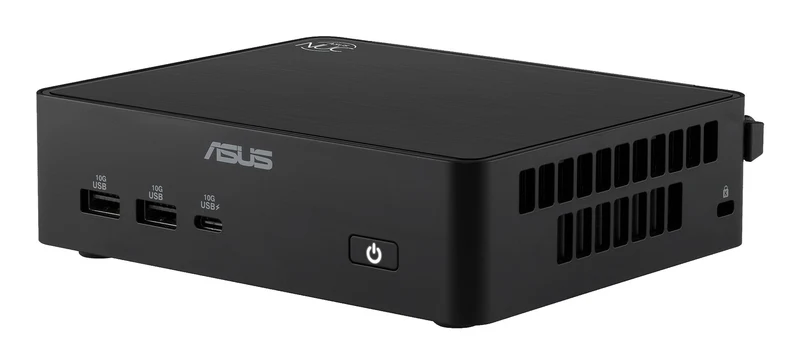

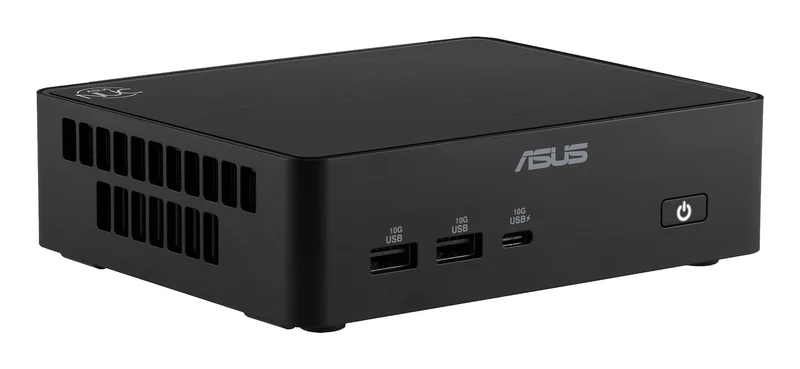

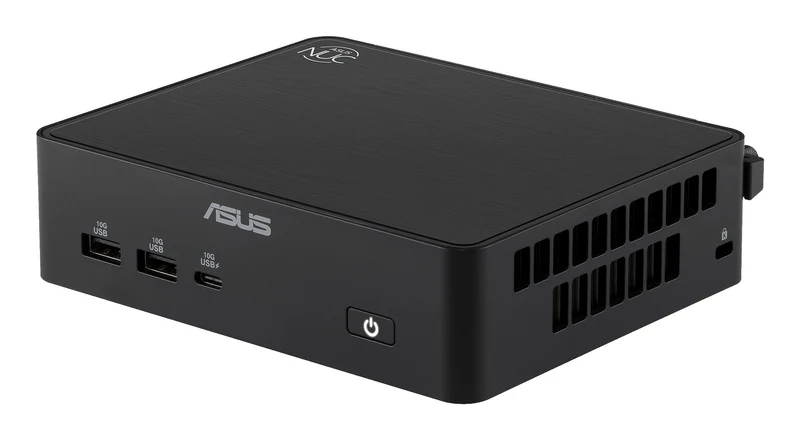

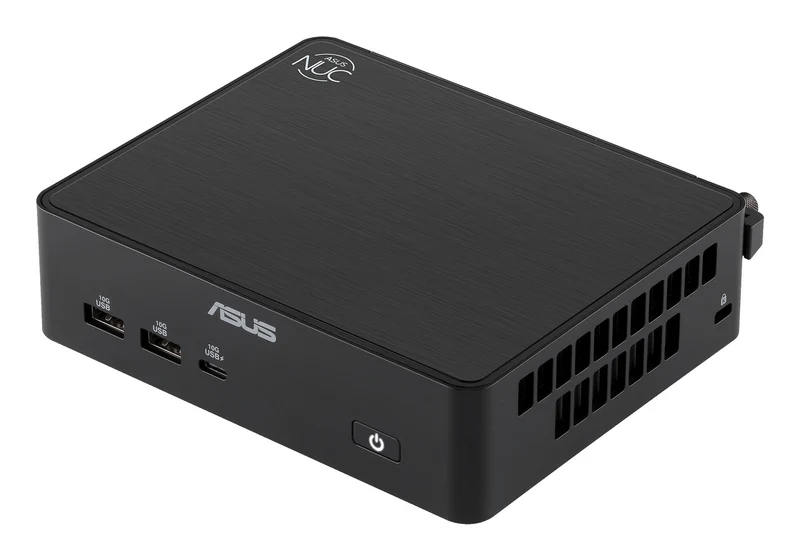

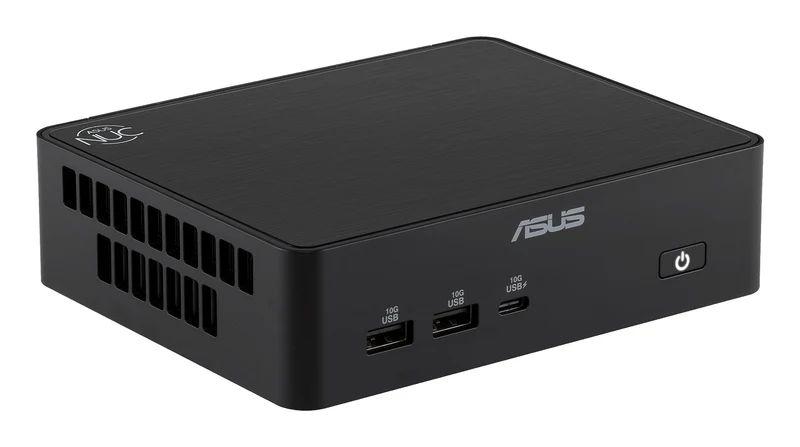

ASUS NUC 16 Pro RNUC16GDKX96C002 Black 378H

• Powered by up to Intel Core Ultra X9 CPU, Arc B390 GPU, and NPU 5, it enables AI-accelerated hybrid computing, delivering up to 180 TOPS for real-time Edge AI
• Up to 96 GB LPDDR5x 9600 MT/s with 20% faster speed and 50% lower power, plus dual-fan cooling for sustained peak performance
• Wi-Fi 7, Bluetooth 6.0, and dual 2.5G LAN provide low-latency, redundant, and secure connectivity for enterprise and Edge AI
• Built-in firmware TPM 2.0 provides enterprise-grade data protection and compliance, enabling IT professionals to securely manage devices and scale services with ease
• Compact 5×4 chassis with Tool-less 2.0 design supports dual M.2 Gen5/Gen4 SSDs, maximizing airflow, flexibility, and performance
• Rugged modular build with long-life availability and rich I/O, including RS-232 and PCIe x1, for POS, IoT, and industrial deployment

Faster, Smarter, More Secure For the AI-Driven Enterprise
The ASUS NUC 16 Pro mini PC features up to the latest Intel® Core™ Ultra X9 series 3 processor featuring Intel Arc™, delivering up to 1.5X-faster gen-on-gen 3D graphics performance, and supports up to 96GB of lightning-fast LPDDR5x memory—all while boasting incredible energy efficiency. Built-in firmware TPM 2.0 (fTPM 2.0) handles data security and management, while dual 2.5G LAN and two HDMI® ports ensure convenient connectivity. Its AI-ready performance and robust security make the NUC 16 Pro ideal for businesses.

Processor
Built-in processor	Yes
Processor manufacturer	Intel
Processor family	Intel Core Ultra X9
Processor generation	Intel® Core™ Ultra (Series 3)
Processor model	378H
Processor cores	16
Processor threads	16
Processor boost frequency	5.1 GHz
Performance cores	4
Efficient cores	8
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	5.1 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Low Power Efficient-core Max Turbo Frequency	3.7 GHz
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.6 GHz
Low Power Efficient-core Base Frequency	1600 MHz
Processor cache	18 MB

Memory
Internal memory installed	No
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
Maximum internal memory	128 GB

Storage
Storage drives installed	No
Supported storage drive types	SSD
Storage drive sizes supported	M.2
SSD form factor	M.2
Storage drive interface	PCI Express
Number of storage drives supported	2
Maximum storage capacity	8 TB

Graphics
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel Arc B390

Audio
Built-in speaker(s)	No

Network
Ethernet LAN	Yes
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth version	6.0
Bluetooth	Yes

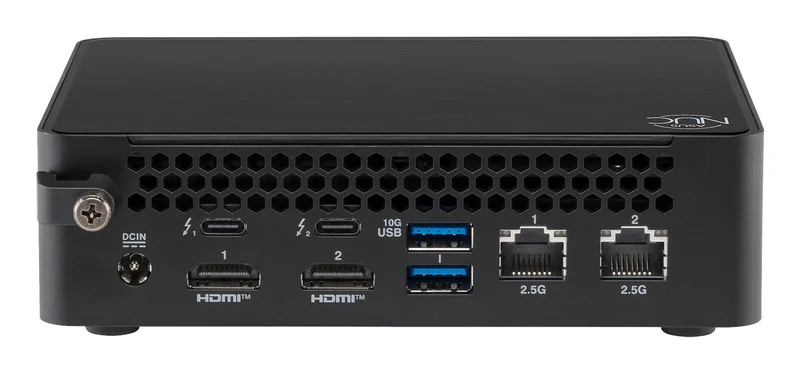

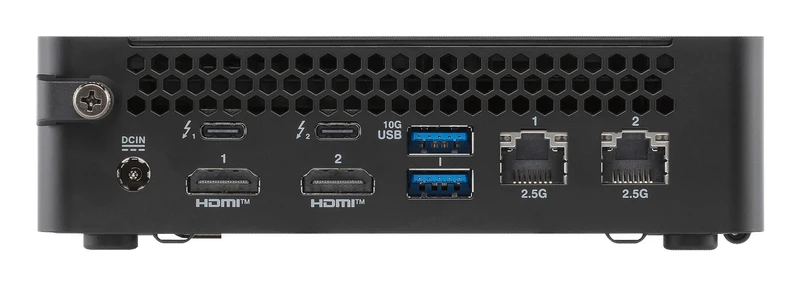

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	2
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes

Design
Product colour	Black
Cooling type	Active
On/off switch	Yes

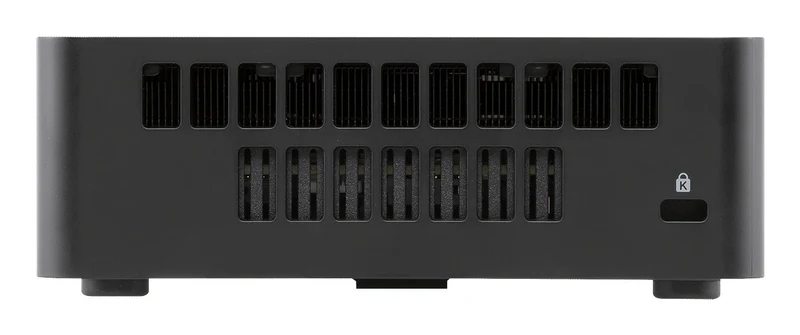

Cable lock slot	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
Product type	Mini PC barebone

Performance
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

General
Product family	NUC 16 Pro

Power
Power supply type	External AC adapter

Operational conditions
Operating relative humidity (H-H)	0 - 92%
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 40 °C

Weight & dimensions
Width	144 mm
Depth	117 mm
Height	42 mm
