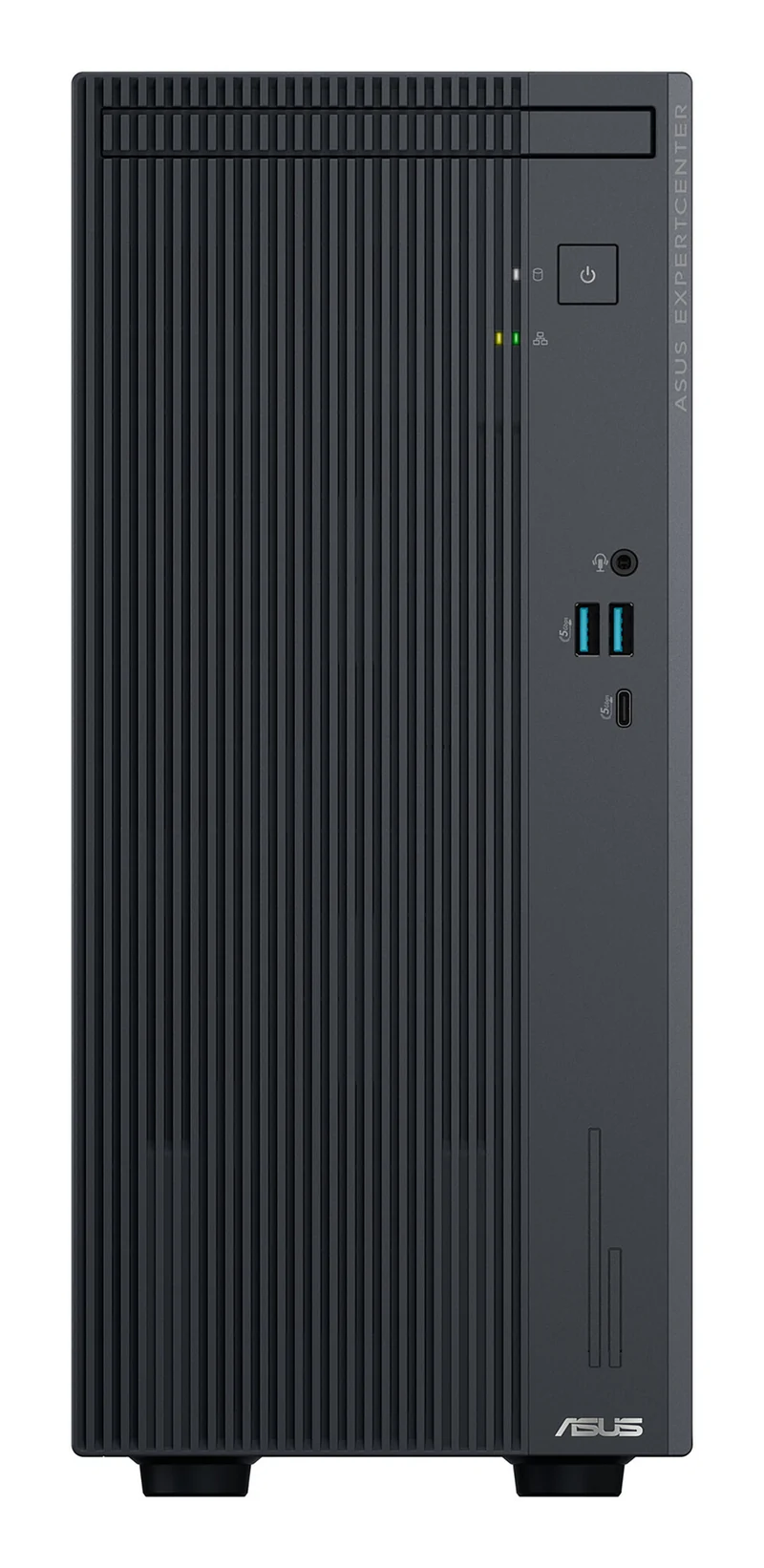

ASUS ExpertCenter P500 Mini Tower P500MV-05210H014X Intel Core 5 210H 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro PC Grey

• Windows 11 Pro 64-bit
• Intel Core 5 210H (12MB Cache)
• 16GB DDR5-SDRAM & 512GB SSD

ASUS ExpertCenter P500 Mini Tower - Exceptional Value and Performance for Businesses
ASUS ExpertCenter P500 Mini Tower combines high-performance, business-grade security, and commercial-class services features in a compact and sleek design, providing budget-conscious small and medium business users with a flexible and organised workspace. Designed to withstand tough conditions and meet MIL-STD-810H US military standards1, it features a tool-free and expandable chassis, ensuring prolonged reliability and convenient upgrades for professionals.

Processor
Processor manufacturer	Intel
Processor family	Intel Core 5
Processor generation	Intel Core (Series 2)
Processor model	210H
Processor cores	8
Processor threads	12
Processor boost frequency	4.8 GHz
Performance cores	4
Efficient cores	4
Performance-core Max Turbo Frequency	5.2 GHz
Efficient-core Max Turbo Frequency	3.6 GHz
Performance-core base frequency	2.5 GHz
Efficient-core base frequency	1.8 GHz
Processor socket	BGA 1744
Processor cache	12 MB
Processor cache type	Smart Cache
Maximum turbo power	115 W
Processor base power	45 W

Memory
Internal memory	16 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory slots	2x SO-DIMM

Storage
Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)

Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics

Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
LAN controller	Intel WGI219V
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	1x1
Bluetooth	Yes
Bluetooth version	5.4

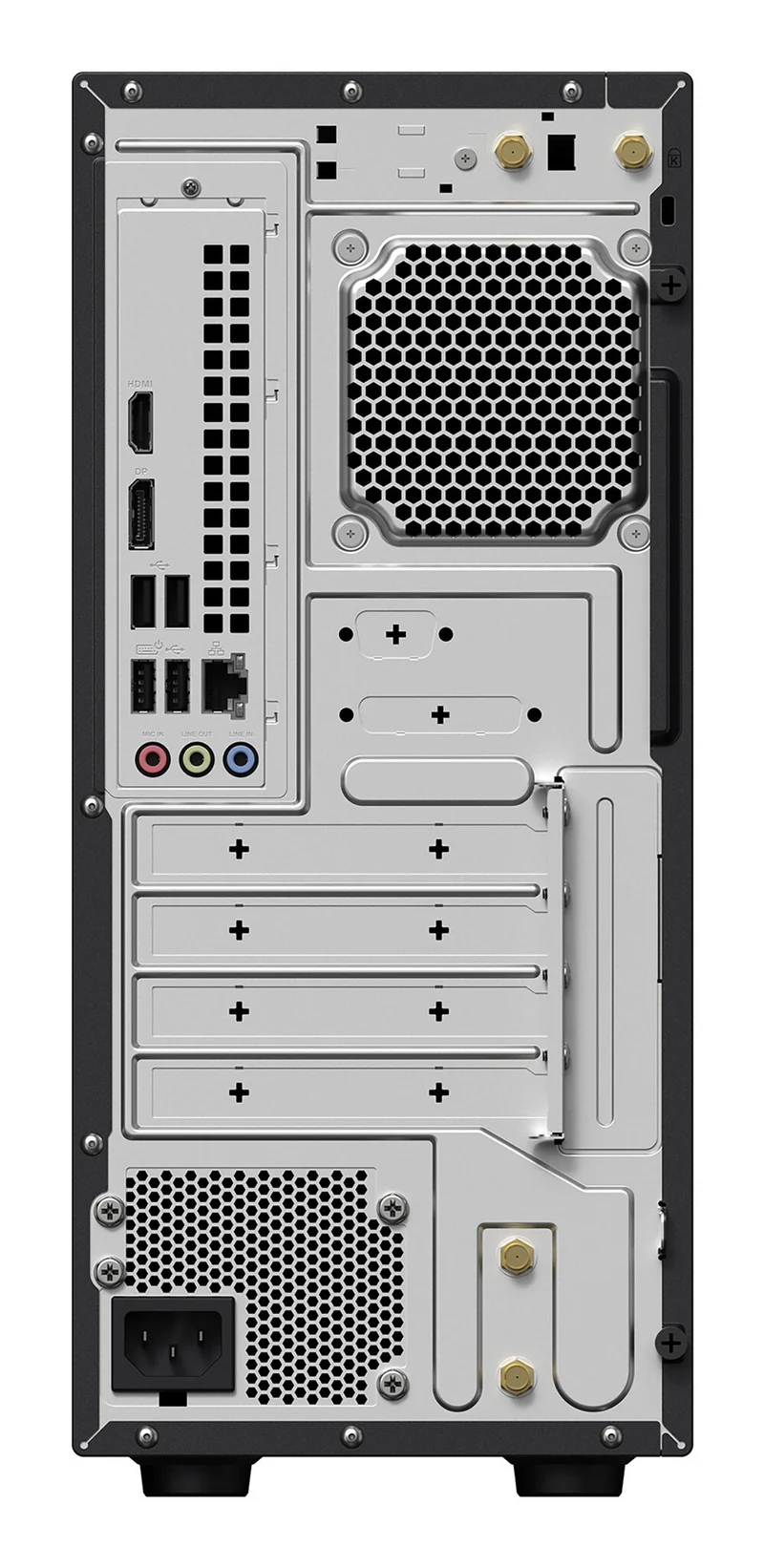

Ports & interfaces
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort version	1.4
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Line-in	Yes
Line-out	Yes
Combo headphone/mic port	Yes
Number of SATA III connectors	2

Expansion slots
PCI Express x16 (Gen 4.x) slots	1

Design
Chassis type	Mini Tower
Colour name	Grey
Volume	15 L
Number of 3.5" bays	1
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Grey
Certified refurbished	No

Performance
Product type	PC
Market positioning	Business
Audio system	High Definition Audio
Audio output channels	7.1 channels
Password protection	Yes
Password protection type	HDD, User
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes

Software
Operating system installed	Windows 11 Pro
Copilot+ PC	No
Operating system architecture	64-bit
Trial software	1-month trial for new Microsoft 365 customers. Credit card required, McAfee 1 years

Power
Power supply	180 W
80 PLUS certification	80 PLUS Bronze

Certificates
Compliance certificates	REACH

Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Silver

Weight & dimensions
Width	155 mm
Depth	296 mm
Height	347 mm
Weight	6 kg

Packaging content
Display included	No
Mouse included on selected markets only	Yes
Mouse included on selected markets	Y
Mouse connectivity	Wired
Mouse included	Yes
Keyboard included on selected markets only	Yes
Keyboard included on selected markets	Y
Keyboard connectivity	Wired
Keyboard included	Yes
Keyboard layout	QWERTY
Keyboard language	UK English

General
Product series	P500 Mini Tower
Product family	ExpertCenter
