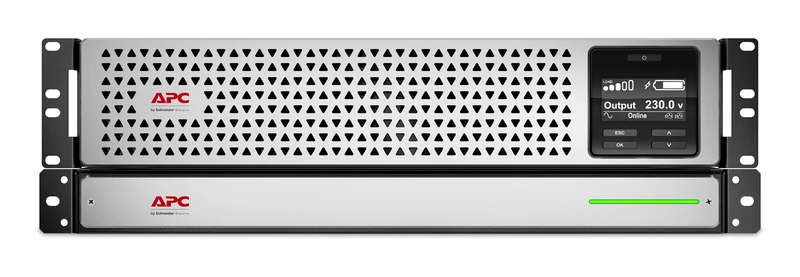

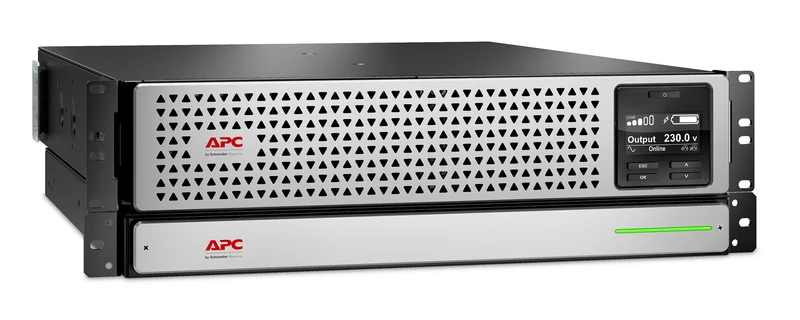

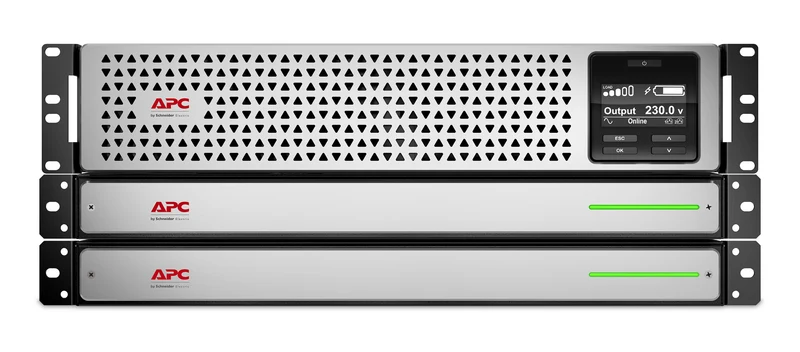

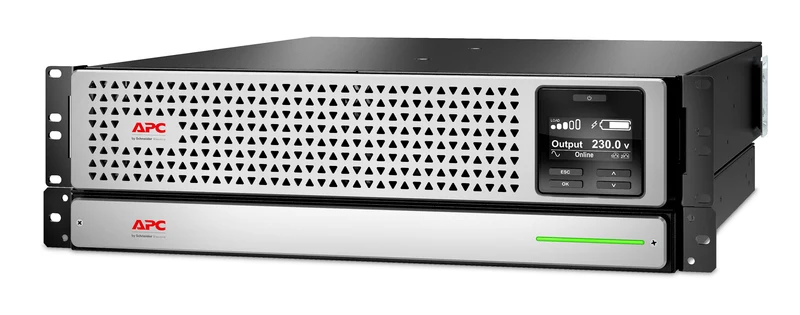

APC Smart-UPS On-Line, 1000VA, Lithium-ion, Rackmount 3U, 230V, 8x C13 IEC outlets, Network Card, Extended runtime, W/ rail kit

• Double-conversion (Online)
• 1 kVA 900 W
• Waveform: Sine
• 8 AC outlet(s)
• Lithium-Ion (Li-Ion)
• Rackmount Black, Grey

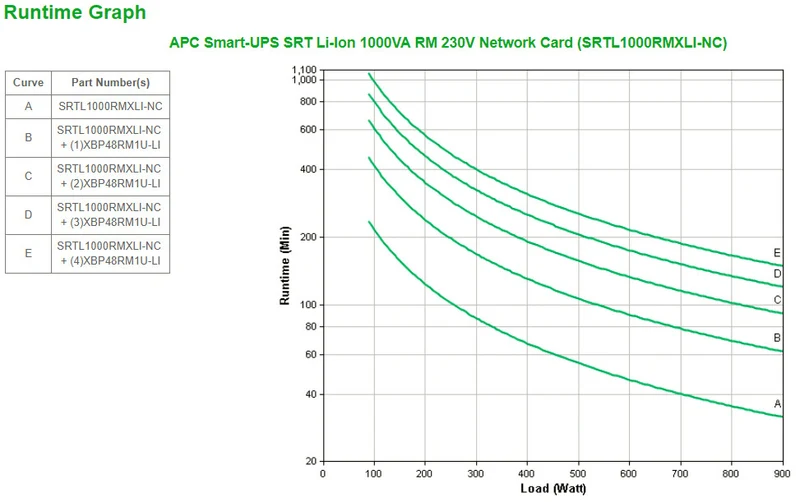

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 8x IEC 320 C13 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.

Features
UPS topology	Double-conversion (Online)
Output power capacity	1 kVA
Output power	900 W
Waveform	Sine
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Input frequency	40/70 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Surge energy rating	340 J
Crest factor	3:1
Emergency Power Off (EPO)	Yes
Noise level	50 dB
Surge protection	Yes
Audible alarm(s)	Yes
Auto-restart	Yes

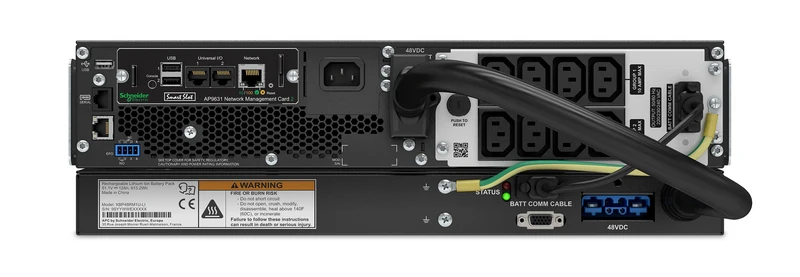

Ports & interfaces
AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	8 AC outlet(s)
USB port	Yes
Serial interface	Yes
Serial interface type	RJ-45
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
Cabling technology	10/100Base-T
SmartSlot	Yes
SmartConnect port	No

Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	10 year(s)
Battery recharge time	6 h
Hot-swap battery	Yes
Automatic battery test	Yes
Cold start	Yes

Design
Form factor	Rackmount
Product colour	Black, Grey
Rack capacity	3U
Display type	LCD
LED indicators	Status
International Protection (IP) code	IP20

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Sustainability
Sustainability certificates	Green Premium

Certificates
Certification	CE, EAC, RCM, VDE

Weight & dimensions
Width	432 mm
Depth	590 mm
Height	128 mm
Weight	25.7 kg

Packaging data
Management card included	Yes
Package width	600 mm
Package depth	850 mm
Package height	445 mm
Package weight	37.4 kg

Logistics data
Products per pallet	6 pc(s)
Harmonized System (HS) code	85078000

Other features
Output voltage	230 V
