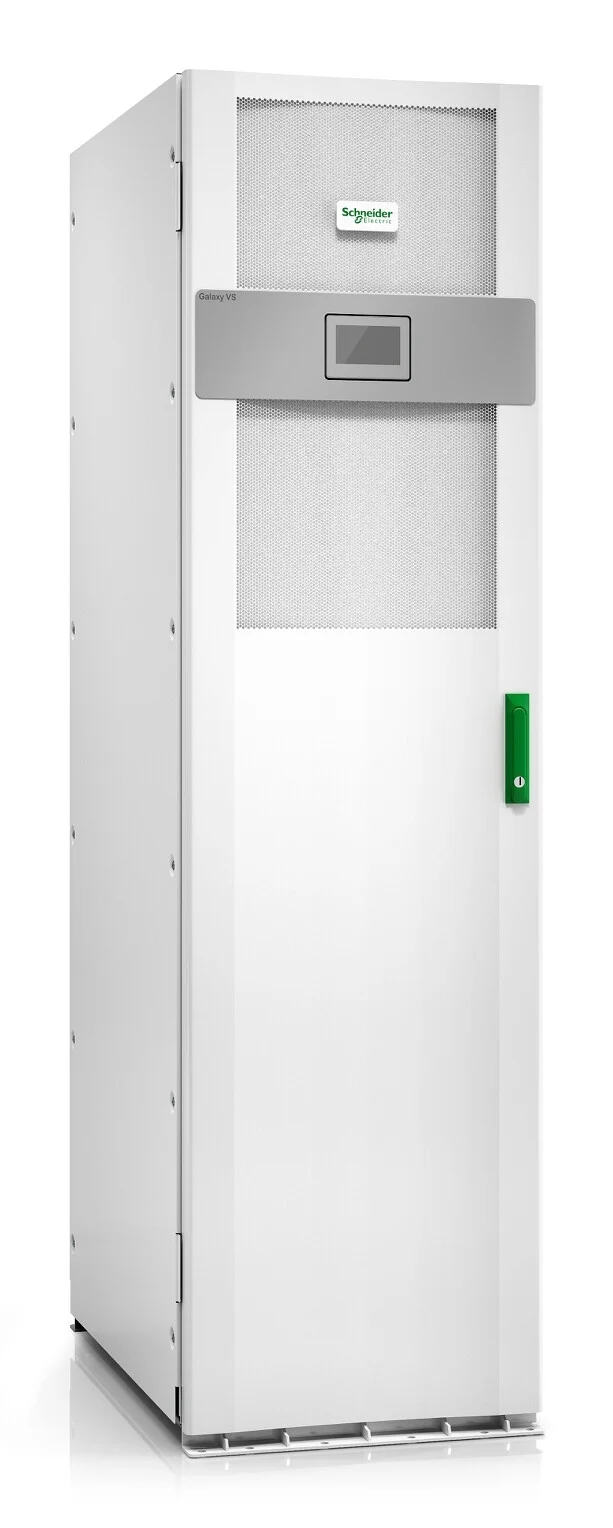

APC GVSUPS30KB5FS uninterruptible power supply (UPS) 30 kVA 30000 W

• Up to 99% efficient in eConversion mode

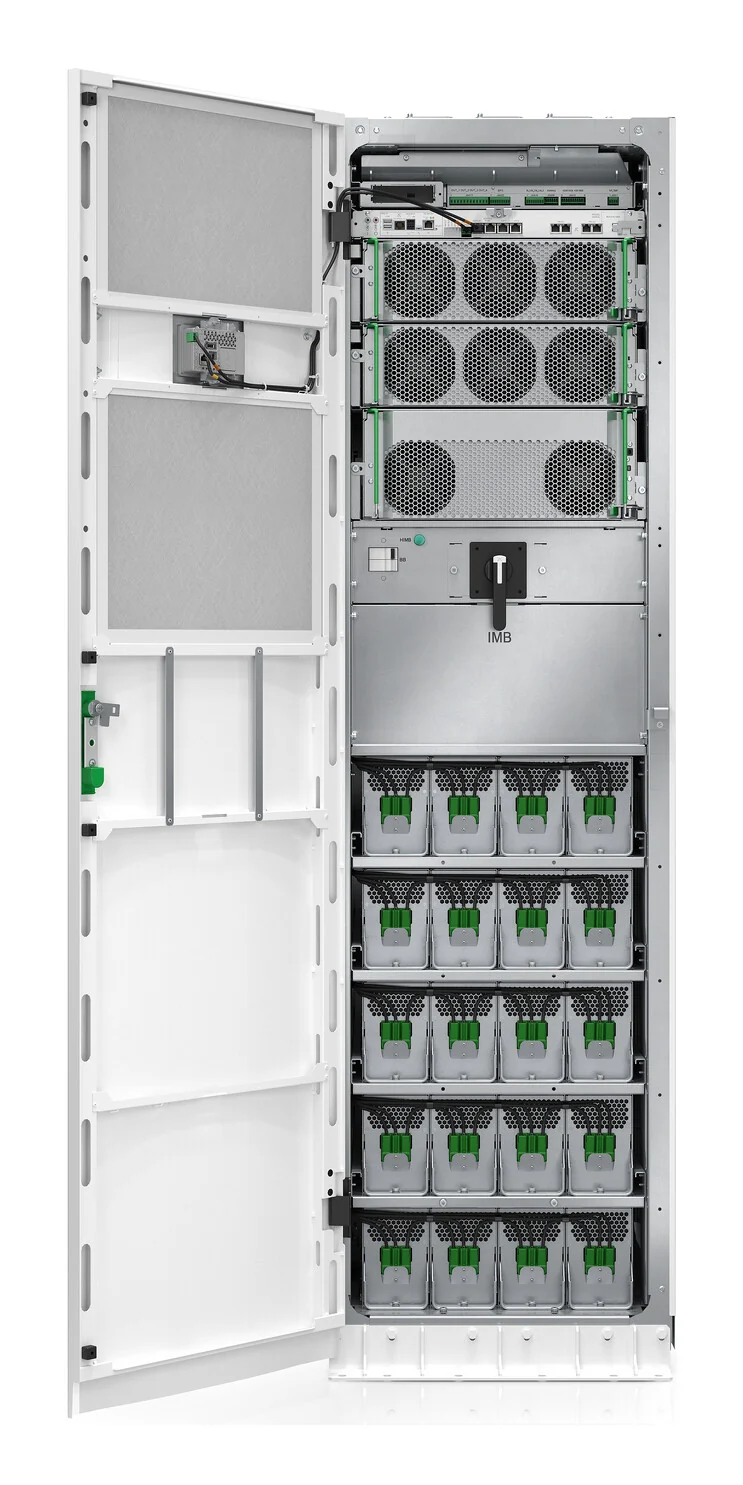

• Maximize availability with modular architecture
• Live Swap: Third party verified module replacement with no scheduled downtime
• Unlock resiliency and sustainability with access to EcoStruxure software

Highly efficient, easy-to-deploy 30 kW, 208 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 3 smart modular high capacity battery strings, expandable to 5 strings for extended runtime. See the battery runtime chart for details.

Features
Output power capacity	30 kVA
Output power	30000 W
Waveform	Sine
Input operation voltage (min)	200 V
Input operation voltage (max)	220 V
Input frequency	40 - 70 Hz
Output frequency	50/60 Hz
Maximum current	107 A
Heat dissipation	6526 BTU/h
Number of input phases	3
Number of output phases	3
Input power factor	0.99
Crest factor	2.5:1
Output voltage Total Harmonic Distortion (THD)	1%
Input current Total Harmonic Distortion (THD)	3%
Noise level	54 dB

Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery voltage	480 V

Design
Product colour	White
International Protection (IP) code	IP20

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	10 - 80%
Operating altitude	0 - 1000 m

Technical details
Minimum order quantity	1 pc(s)

Weight & dimensions
Width	550 mm
Depth	847 mm
Height	1970 mm
Weight	665 kg

Packaging data
Management card included	Yes
Package width	550 mm
Package depth	847 mm
Package height	197 mm
Package weight	665 kg

Logistics data
Warranty period	1 year(s)
