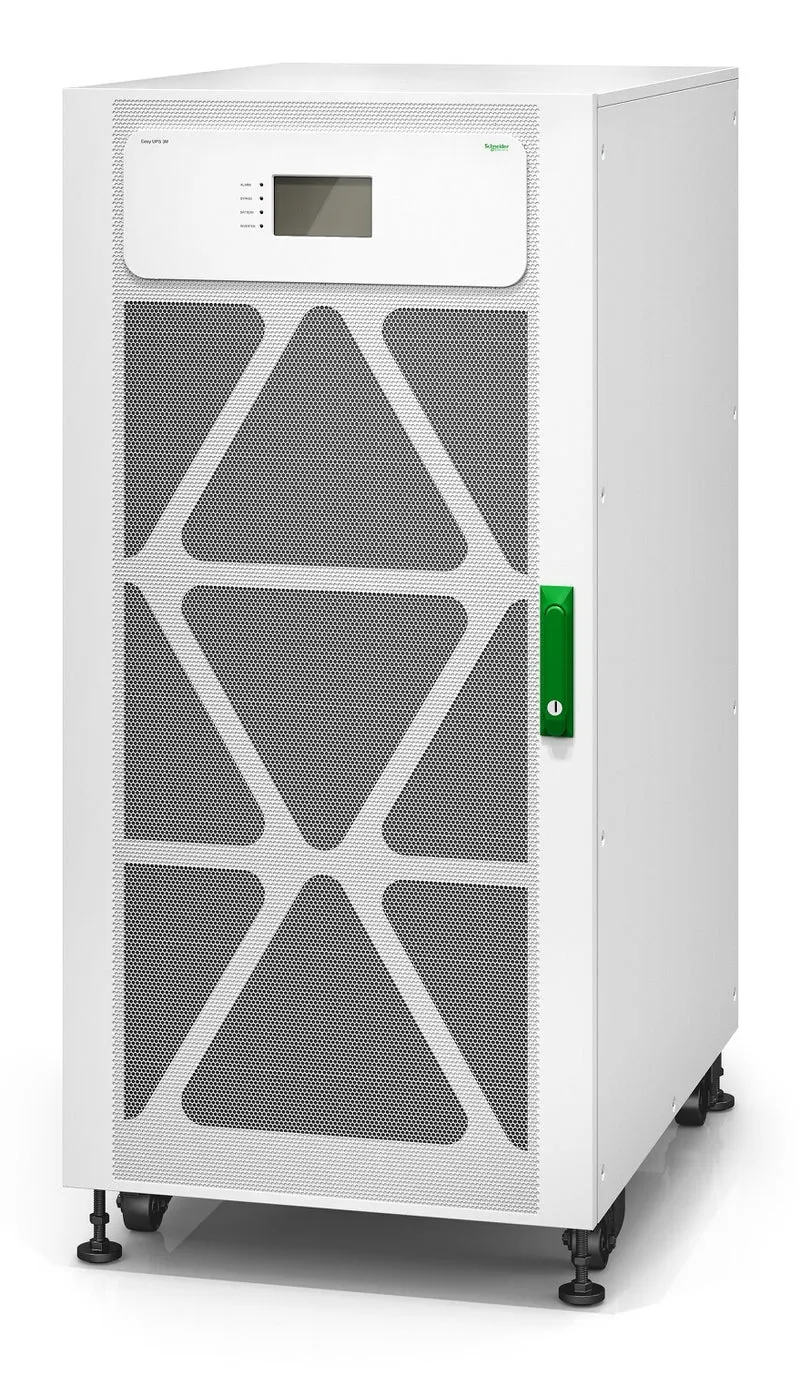

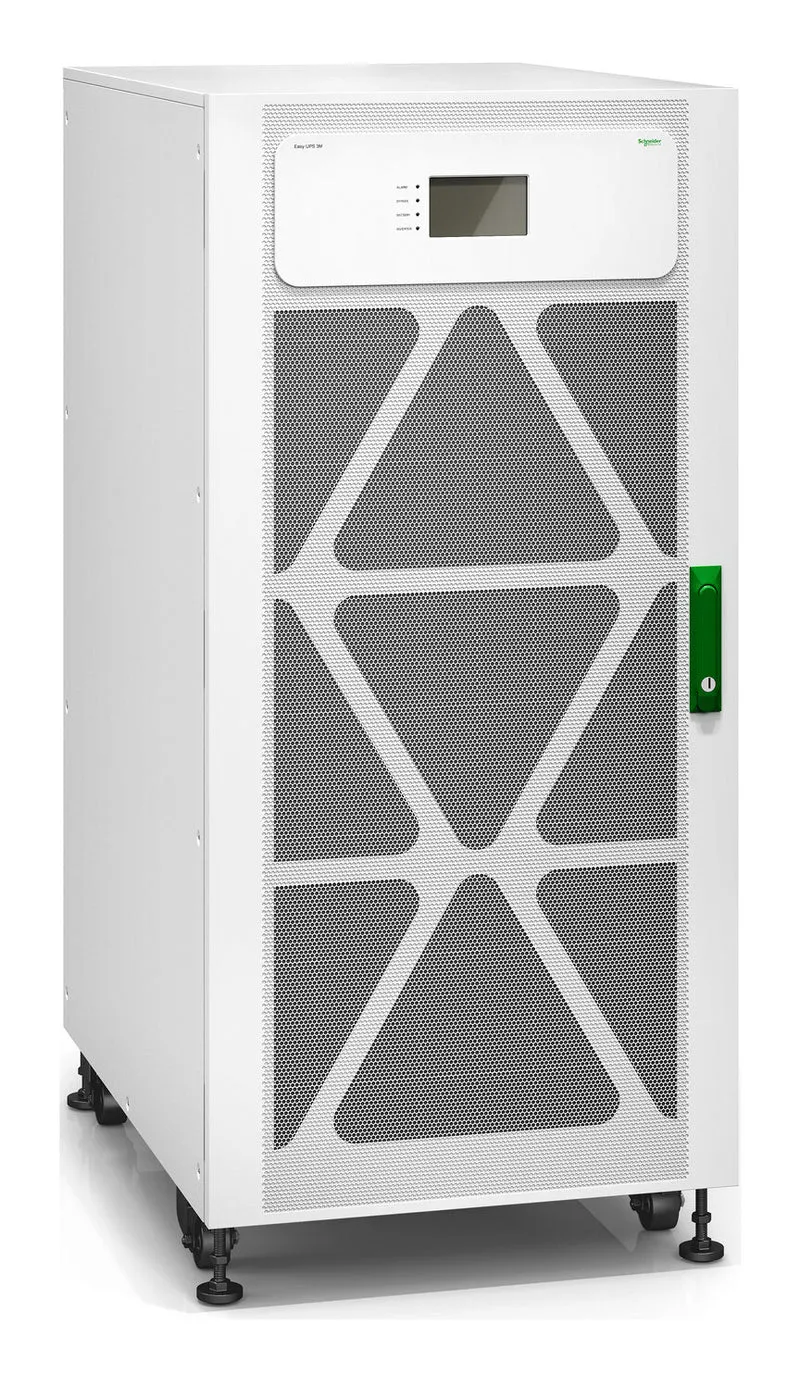

APC E3MUPS200KH uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W

• Parallel up to 6 Easy UPS 3M UPSs for capacity or redundancy
• Battery flexibility, including compatibility with Galaxy Lithium-ion battery cabinets
• IP20 rated (IP30 with optional kit)

Highly efficient, easy-to-deploy 10 kW, 208 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 1 smart high-capacity modular battery string, expandable to 4 strings for extended runtime. See the battery runtime chart for details.

Features
UPS topology	Double-conversion (Online)
Output power capacity	10 kVA
Output power	10000 W
Waveform	Sine
Input operation voltage (min)	380 V
Input operation voltage (max)	415 V
Input frequency	40 - 70 Hz
Output frequency	50/60 Hz
Output voltage regulation	1%
Maximum current	336 A
Heat dissipation	10000 BTU/h
Number of input phases	3
Number of output phases	3
Power factor	0.7
Input current Total Harmonic Distortion (THD)	3%
Noise level	72 dB

Battery
Battery technology	Sealed Lead Acid (VRLA)

Design
Product colour	White
Control type	Touch
Display type	LCD
International Protection (IP) code	IP20

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 1500 m
Non-operating altitude	0 - 15240 m

Power
Input current (max)	336 A

Technical details
Battery included	No
Minimum order quantity	1 pc(s)

Packaging content
Manual	Yes

Weight & dimensions
Width	600 mm
Depth	850 mm
Height	1300 mm
Weight	304 kg

Packaging data
Package width	975 mm
Package depth	725 mm
Package height	150 mm
Package weight	338 kg

Logistics data
Warranty period	1 year(s)
