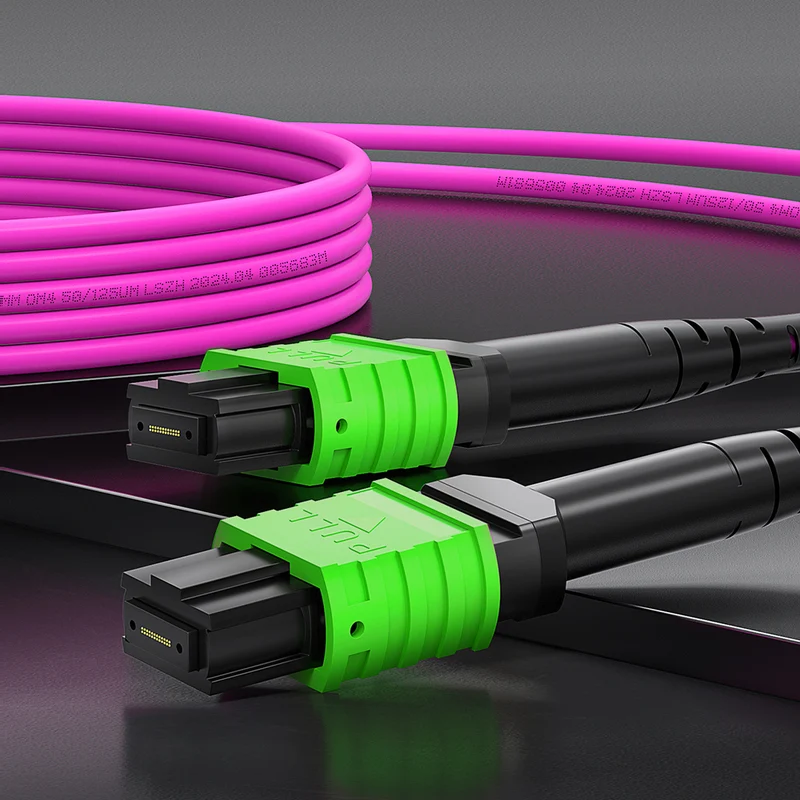

AMPCOM MPO Trunk Cable, MPO-24 APC (Female) to MPO-24 APC (Female), 24 Fibers, Multimode (OM4), LSZH/Riser, 0.35dB Max, Magenta

MPO-24 Jumper, F to F, APC, 24F, OM4 50/125µm, LSZH/Riser, 0.35dB

The AMPCOM MPO-24 Jumper is a 24-fiber multimode patch assembly built on OM4 50/125µm bend-insensitive fiber, terminating in one MPO APC female connector at each end. Housed in a magenta LSZH jacket (OFNP-rated option per AMPCOM base spec), it is factory polished, interferometer-checked, and 100% insertion-loss tested for verified low-loss performance. The 24-fiber MPO interface maps directly to 40G QSFP+ SR4 / 100G QSFP28 SR4 parallel transceivers, making it purpose-fit for top-of-rack patching, MPO cassette interconnection, and seamless migration from 10G duplex to 40/100G parallel optics. Multiple polarity options (Type A straight, Type B cross, Type C pair-flip) ensure correct Tx/Rx alignment in structured channels.
