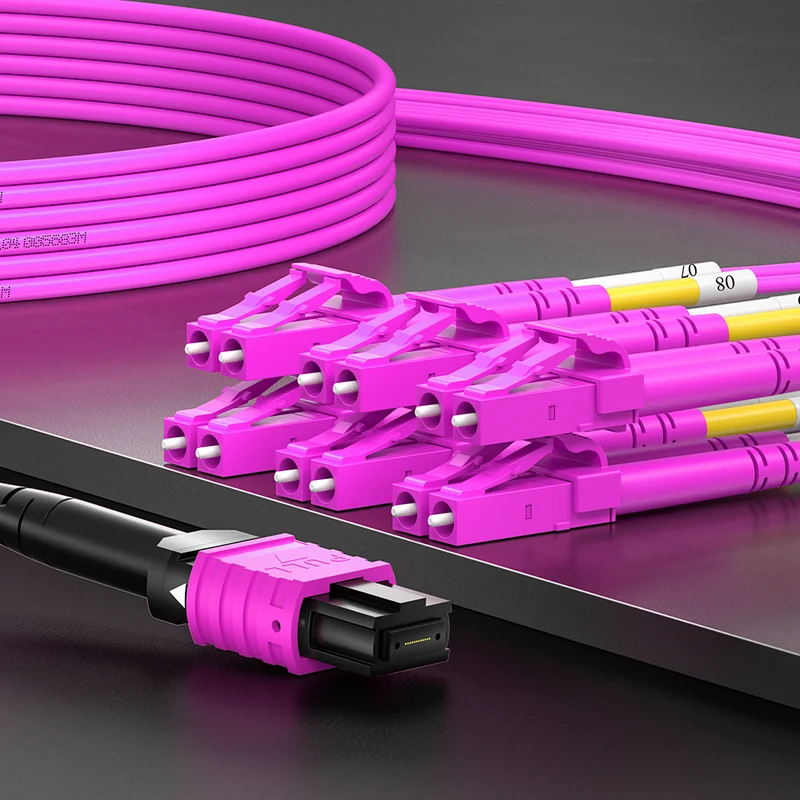

AMPCOM MPO-12 Harness, Multimode OM4 50/125µm 12 Fibers Optic Cable, MPO APC (Female) to 6 x LC APC Duplex, Magenta LSZH Jacket

MPO-12 F to LC Harness, APC, 12F, OM4, LSZH/Riser, 0.35dB

The MPO-12 to 6×LC APC Duplex Harness is a 12-fiber breakout assembly that converts one MPO-12 APC female connector into six LC APC duplex connectors using OM4 laser-optimized multimode fiber (50/125µm). All connectors are factory polished, end-face inspected, and 100% insertion-loss tested, delivering verified low-loss performance for bridging parallel-optics 40G/100G SR4 ports (QSFP SR4) down to six duplex 10G/25G LC SR ports (SFP+ / SFP28). The magenta LSZH jacket provides low-smoke zero-halogen safety and OM4 color identification per TIA-568.3-D. Type A (straight) and Type B (cross) polarity options ensure correct Tx/Rx alignment when mating to MPO-12 SR4 transceivers.
